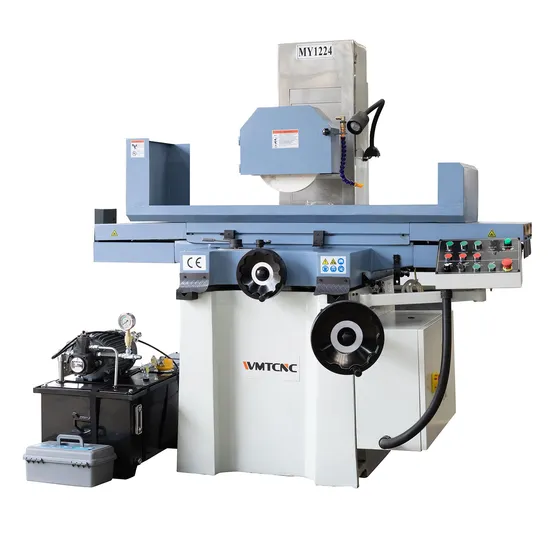

Hydraulic surface metal grinding machine MY1224 for industrial
Basic Info.
Model NO.
MY1224
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size (L W)
600X300mm
Table Travel
630X320mm
Max. Loading on Work Table
200mm
Spindle Motor
1.5kw
Wheel Size
250X25.4X76.2mm
Transport Package
Standard Ply-Wood Case
Specification
CE SGS ISO9001
Trademark
WMT
Origin
Chizhou, Anhui, China
HS Code
8460190000
Production Capacity
50sets/Month
Product Description
Surface Grinding Machine (MY1224)
**X-axis moving by hydraulic driven
**Y-axis built-in power feed.
**Z-axis moving by Rapid elevating motor
**Table Size: 600x300mm
**Table Travel: 630X320mm
Features:
1,Machine reasonable structure, good rigidity, good looks, easy to operate.
2.Table movement in longitudinal is hydraulic transmission.
3.Spindle motor no vibration and low noise.
Specification:
Item | Specification | MY1224 | MY1230 | |
Worktable | Max.workpiece to be ground(LxWxH) | 600x300mm | 700x320mm | |
Max.travel of table(LxW) | 640x320mm | 640x370mm | ||
Table max. cutting area(Lxw) | 640x320mm | 760x370mm | ||
Number of T-slot | 1x14mm | 1x14mm | ||
The grinding head | Distance from table surface to spindle center | 490mm | 540mm | |
Wheel size(dia x width x bore) | 250x25.4x76.2mm | 335x40x127mm | ||
Spindle speeds | 1440r/m | 1440r/m | ||
The amount of feed | Table longitudinal (left and right) speed(stepless) | 3-20/min | 5-25/min | |
Table horizontal(before and after)the amount of feed | Continous(variable speed) | 150mm/min | 150mm/min | |
Intermittent(stepless) | 0-5 | 0-5 | ||
The handwheel rotates | 4mm | 4mm | ||
Handwheel each grid | 0.02mm | 0.02mm | ||
Vertical (up and down)feed wheel feed | The handwheel rotates | 2mm | 2mm | |
Handwheel each grid | 0.01mm | 0.01mm | ||
Motor | Spindle motor | 2.2mm | 4mm | |
Cooling motor | 40kw | 40kw | ||
Reversing feeder | Hydraulic motor | 1.5kw | 1.5kw | |
Working pressure | 3mpa | 3mpa | ||
Fuel tank capacity | 80L | 80L | ||
The max.flow | 18L/min | 18L/min | ||
Working precision | The machined surface of the base of parallelism | 300/0.004mm | 300/0.004mm | |
Surface Roughness | Ra0.32um | Ra0.32um | ||
Net weight | 1.5T | 2.1T | ||
Gross weight | 1.65T | 2.35T | ||
Machine size | 1960x1630x1870mm | 25600x2430x1920mm | ||
Standard accessories:Tool box, Balancing stand
Flange wrench,Foundation bolts, Open-end wrench
Inner hexagon spanner
Wheel dresser,Balancing shaft
Setting palte, Wheel dresser holder
Permanent magentic chuck Optioanl accessories:
2 axis DRO
CE protection
Machine vice
Vacumn pump
