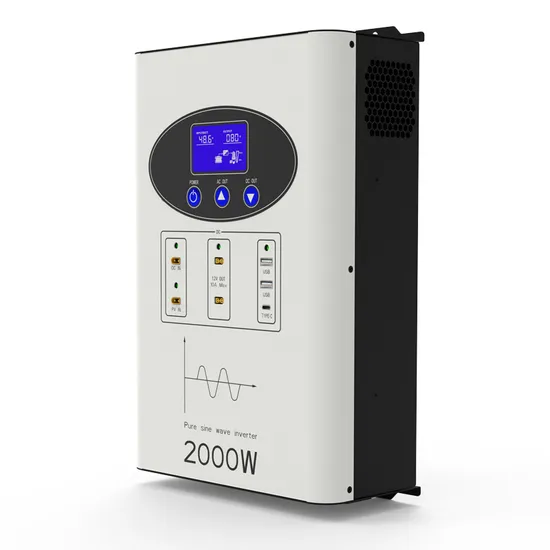

2000W Pure Sine Wave Solar Inverter PWM Generator Home Energy Storage System

Product Description

Product Description

SPECIFICATIONS
Output	Rated Power	2000W
	Peak Power	4000W
	Rated voltage	220V
	Frequency	50Hz±3Hz
	USB-A Output	5V/2.4A
	Tpye-C Output	5V/2.4A
	DCOutput(XT30)	12V/10A
	AC Output	220V/50Hz
AC Input	Voltage range	100-240V
	Charging power	190W
DC Input	Voltage range	54V
	Input current	10A(max)
	Charging power	500W(max)
Battery Input	Battery voltage	48V
	Voltage range	40~54V
	Conversion rate	≥90%
	Battery type	48v Battery
	Input interface	SupportXT9o
solar energy Input	Pv voltage range	60~100V(max)
	Pv charging interface	Support XT60
	Charging power	1000W
	PWM power	Support
Others	N.W(g)	4.9kg
	G.W(g)	5.15kg
	Dimensions L X W X H	377x230x110mm

Detailed Photos
Certifications
Company Profile
Shenzhen Thor New Energy Co.,Ltd. established in Febbruary 2022, is a wholly-owned subsidiary of Jiangxi Wannian Xin Microelectronics Co., Ltd. The campany currently employs senior R&D engineers from EMERSON, INFINEON, CREE, ON, FUJITSU, and other well-known companies.
Thor has a total investment of 400 million RMB, with products featuring independent intellectual property rights and multiple invention patents. The main R&D products include DSC main control chips, power management SIP modules, SIC IPM, SIC PIM modules, etc., applied in grid frequency regulation energy storage, fast charging piles, 5G micro base station power supply, communication power modules, high-speed rail, automobiles, elevators, motor drives(servo, frequency converters, air conditioners, industrial washing machines, robots), and other fields.
Adhering to the business philosophy of"practical innovation, unity and cooperation; scientific progress, embracing the future; customer first, integrity-based,"we strive for innovation, keep pace with the times, enhance ourselves, and continuously improve. "Technology creates the future, ideals achieve value," and "thinking about what customers need, providing what customers demand," we are willing to create a beter future with our customers.
