Precision Stone Machine Granite Quartz Cutting International Standard for Countertops Slab Tile

Product Description

Fully Automatic Granite/Marble Bridge Saw Stone Range of Application
Bridge saw machine to cut slabs and tile of Granite, Marble, Sandstone, and other Stone Materials.
Product Description
HQ400 and HQ600 are smaller models than HQ700 with much favorable price.
Blade tilt 45 degree for mitered cuts available for model HQ700.
1. Simple Operation
With the latest technology, the bridge saw can be programed to cut slabs into tiles and process countertops completely, effectively, precisely.
2. Multifuctional Table:

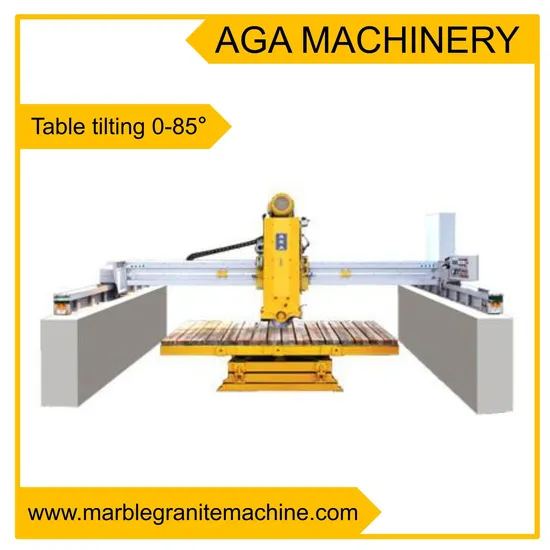

The table turns 0 - 360° horizontally and tilts 0 - 85° vertically. The laser guide and sensors give high accuracy for every cutting. Hydraulic System for easy loading and unloading.
3. Cutting Countertop and Tile
Product Parameters

Model	HQ400	HQ600	HQ700
Blade Size	Φ300-Φ450 mm	Φ300-Φ600 mm	Φ300 - Φ700 mm
Table Size	3200×2000 mm 126"×79"
Blade Tilting	N/A		0°- 50°
Table Turnover	0°- 85°
Max. Cut (L×W)	3200×2000 mm 126"×79"
Table Rotation	0°- 90° / 360°		0°- 360°
Max. Cut Depth	110 mm 4"	180 mm 7"	230 mm 9"
Spindle Motor	15 Kw 20HP		18.5 Kw 25HP
Size (L×W×H)	6×4.8×2.9 m	6×4.8×3 m	6×5.7×3.5 m
Weight	6,300 Kg	6,500 Kg	7,500 Kg

Machine Images
More Similar Options
Company Description
AGA has been devoting to manufacturing machinery for processing and
fabrication of marble granite and providing reliable service for
years. The products include bridge saw, block cutter, multi blades
cutting machine, polishing machine, paving stone machine, cobble
stone machine, etc. that have been successfully exported to world
stone market in the USA., Canada, Spain, Russia, Ukraine, Brazil, Saudi
Arabia, Egypt, India, etc.
AGA understands that every machine creates value for customers.
Every machine comes from sophisticated technology and is
manufactured by our dedicated and experienced workers under strict
inspection and full test. Also the engineers are more than happy to
go for installation, training and commissioning and the after sales
team is online providing prompt response.

FAQ
1. Is the operation language on the machine English?
Yes, also the input size in mm or Inch.

2. When the machine will be ready for shipment if I place an order?
Machine will be ready in 10 - 35 days from time of ordering. It takes a little more for custom made orders.
Immediate delivery available when machine is in stock.

3. How long will I receive my machines?
It depends where you are. The ocean transport takes 10 - 40 days to arrive in your port.

4. Whether the machines fit the electricity power in our country?
Yes. The machines work with industrial electricity power of 3 phase and the voltage may be different in countries like 220v, 240v, 380v, 415v, 440v, 480v, 600v, etc. Please advise your voltage so we can make it fit your power.

5. How do you deliver the machines?
Big machines are transported in 20 ft or 40 ft box container.
Small machines available for LCL (Less than Container Load).

6. What is the warranty for the machine?
One year.

7. What is the lifetime of the machine?
Normally 15 years or more if properly maintained.
