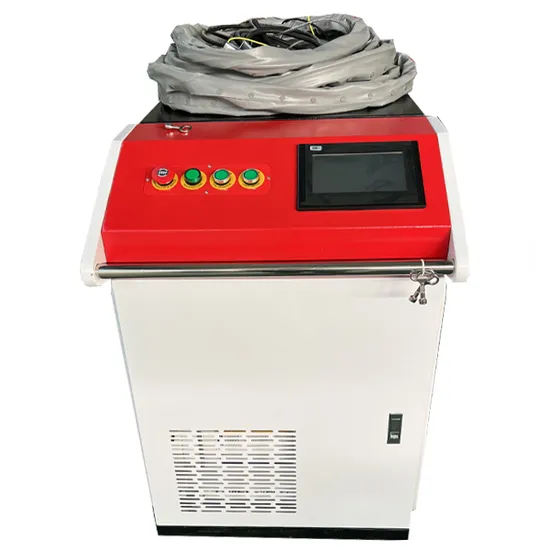

Handheld CNC Fiber Laser Welding Machine with 1500W Max Laser Source

Product Description

Product Description
Laser welding is a type of welding that uses a high-energy density laser beam as a heat source to locally heat a material in a small area, dissolve the material, and form a specific molten pool to achieve the welding effect. Laser welding is mainly used for welding thin-walled materials, precision parts, etc. It can achieve spot welding, splicing welding, sealing welding, overlap welding, etc. It has small thermal deformation, beautiful and flat welds, high quality welds, and does not require secondary polishing treatment. In recent years, laser welding has been widely used for welding products such as stainless steel, carbon steel, galvanized sheet, copper, aluminum, etc.
The handheld laser welding machine adopts a handheld swinging welding head, which is flexible and simple to operate without the need for professional welding technology. It is suitable for small-scale and large-scale production and processing, and is widely used in various industries such as sheet metal processing, cabinets and kitchenware, chassis and cabinets, stair handrails, elevators
and escalators, display shelves, doors and windows, advertising models, stainless steel products, and so on.

Main Configuration

1	Laser	MAX Brand 1500W	1 pc
2	Fiber laser cables	MAX brand	10 m
3	Control system	Chaoqiang weiye brand	1 set
4	Movable welding head	Chaoqiang weiye brand	1 set
5	Auto feeding wires device	Chaoqiang weiye brand	1 set
6	Welding nozzle	Chaoqiang weiye brand	7 pieces
7	Cutting nozzle	Chaoqiang weiye brand	1 piece
8	Protect mirrors	Chaoqiang weiye brand	10 pieces
9	Machine cover	zhongke	1 set
10	Water chiller	Teyu/teli	1 set
Remarks: Provided by the purchaser: argon gas, power supply, and welding wire.

Detailed Photos
MAX brand 1500W fiber laser sourrce CW-1500W model water chiller

Auto wire sending device Chaoqiao contrrol system with electric parts

Laser welding torch CHAOQIANG control panel

Chaoqiang control card nozzles, and other spare parts with machine together

Product Parameters

No.	Model	ZK-HW-1000W	ZK-HW-1500W	ZK-HW-2000W
I.Laser source		MAX	MAX	MAX
1.	Output Power (w)	1000w	1500w	2000w 3000w
2.	Center wavelength	1080nm ±5
3.	Fiber Cable length	10m
II.Water Cooling		1.5P	2P	2.5P
III.Laser head ,standard model. Chaoqiang, WSX(Optional)
1	Spot size (mm)	1.5/1.8/2.0 (XINGHONG)
		0.2-5mm adjustable (SUP / Qilin)
		0-4mm adjustable (WSX)
2	Working Mode	"O"(XINGHONG)
		dot/line/circle (SUP / Qilin)
		"Z"(WSX)
3	Protective lens	D20*2
4	Auto Wire-feeder	Standard

Specification

1.Easy to move and operate
2.Compact machine
3.Perfect output beam quality
4.High reliability
5.No consumables, maintenance-free
6.Fiber laser source, Long life working.
7.The international latest, most reliable structure
8.Small size, power consumption is small, no high-voltage without large water-cooling system.
9.OEM available.
