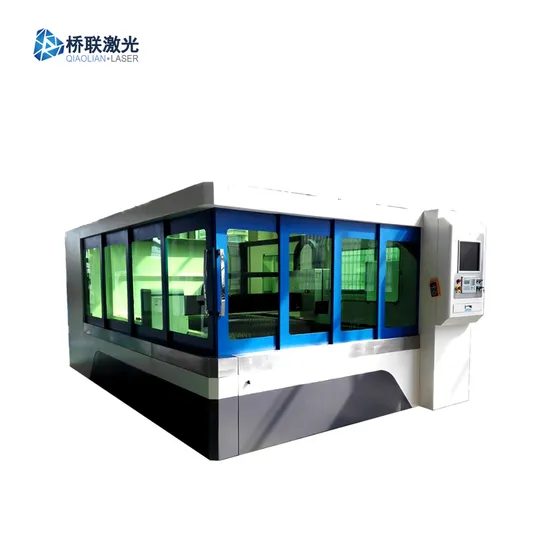

Single Table Fiber Laser Metal Sheet Cutter Machine Price

Product Description

Single Table Fiber Laser Metal Sheet Cutter Machine Price I.Features 1. Open-type StructureMachine cutting process is totally visible. Easy to load and unload from front, left and right side.2. Advanced Appearance DesignEasy to install and quick to put into production, minimizing your waiting time for working; Designed as high-standard sealing style to prevent dust from entering in and components from being ignited.
II. Advantages 1.Steel Plate Welding Bed 1.Our laser machine body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.
Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.

2.Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;


2. Cast Aluminum Beam
Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;
3.FSCUT4000E EtherCAT Bus System *Support basic technique of Fly cut, frog-leap lifting, kerf width compensation, lead line, micro-joint, pre-piercing, film cutting etc.*Provide fine cutting technique, smooth start and end in the toolpath cutting.*Support intelligent barrier avoidance, laser head frog-leap lifting in production.*Support scan QR import drawing, task scheduling, and multi-area production etc.*Maximum acceleration 1.5G.*Provide dual-Y drive position error detect function.

4.Intelligent bus control cutting head, Active Collision Prevention It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently; Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.

5.Imported Parts, Precision Guaranteed

Equipped with dualhigh-powered servo motors and drivers which from German	Core transmission parts like speed reducer and gears are imported from Japan	High-precision racks,guide rails and ball screws are produced by world-famous brands.

6. Quality Control System Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards;
III. Parameters

Model	JWM3015	JWM4015	JWM4020	JWM6015	JWM6020	JWM6023
Power	6000W
Working Area (L*W)	3000*1500mm	4000*1500mm	4000*2000mm	6000*1500mm	6000*2000mm	6000*2300mm
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.01mm
Positioning speed	80m/min
Max. Acceleration	1G

*The above data are for reference only, subject to the actual product!
IV. Customers site


V. Cutting samples
