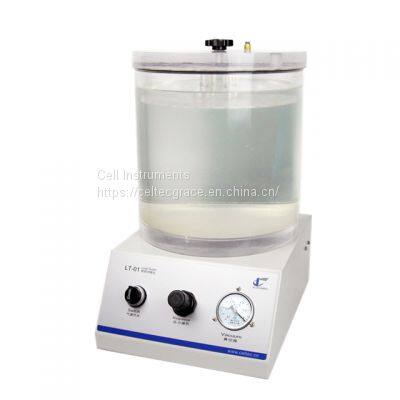

Vcauum Leak Tester ASTMD3078 Flexible Packaging Air Tightness Test Instrument

Product Details

Product Description

Product Description
Leak Tester is used for the seal integrity checking of packages, containers, bags, pipes that are used in food, beverage,
pharmaceutical, daily chemical, cosmetic and electronic industries, etc
Leak Tester complies with ASTM D3078 and GB/T 15171 standards and could be modified to ASTM F 2054 Bubble Test.
Features
1. PLC control unit inside and HMI touch screen operation.
2. Digital vacuum degree and test time input and whole automatic test process.
3. Parameters and test data (failure and non-failure) automatic saving
4. Automatic vacuum maintenance and back-flushing
5. PMMA vacuum chamber, better for food and pharmaceutical tesing
6. We offer different chamber size
7. Use compressed air to convert to vacuum and no vacuum pump required
8. Easy operation and maintenance
9. Support local language display

Sealing Temperature	Ambient~250℃
Temp Accuracy	±0.2℃
Heat Seal Time	0.1~9999H
Sealing Jaws	40mm×10mm×5 Tf Coated
Sealing Pressure	0.15MPa~0.7MPa
Gas Pressure	0.7 MPa
Port Size	Ф6 mm PU Hose
Power	220V, 50Hz
Dimensions	455*320*440mm (LWH)
