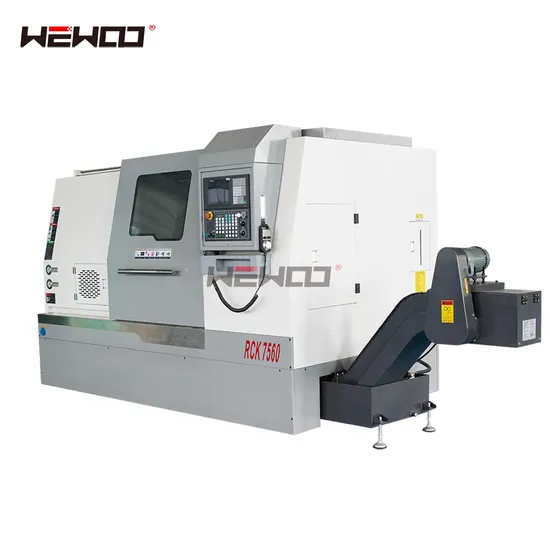

Nc Horizontal Lathe Metal Cutting Machine Tool Rck7560 Certified by CE
| US$30,000.00-32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RCK7560
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Mechanical Drive
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
CNC Controller
GSK/Siemens/Fanuc CNC Controller
Swing Over Bed
560mm
Swing Over Cross Slide
360mm
Max.Workprice Length
500/1000mm
Spindle Bore
65
Chuck
Hydraulic Chuck
Diameter of Rotation
400mm
Tailstock
Hydraulic Tailstock
Tool
8 Hydraulic Turret
Hand Pulse
Moving Hand Pulse
Application Type
Metal-Cutting
Applicable Countries
All Countries
Spindle Speed Range
4200 Rpm
Tool Size
25 X 25
Main Moto
7..5
Transport Package
Wooden Case
Specification
2500*1800*1800mm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month
Packaging & Delivery
Package Size
270.00cm * 200.00cm * 200.00cm
Package Gross Weight
4500.000kg
Product Description
NC Horizontal Lathe Metal Cutting Machine Tool RCK7560 Certified by CE1. TCK56integrated casting bed with high tensile and seismic resistance
2. Designed with a 45 degree tilt angle for easier chip removal
3. Three axis rail design, efficient processing, and improved efficiency.
4. Hydraulic small spindle tailstock, which can be intelligently programmed for more efficient processing
5. It can be equipped with hydraulic center frames, cylinder clamp heads, etc., which have high processing efficiency and accuracy whether used for small or large workpieces. Product Parameters
| SPECIFICATIONS | Units | TCK46A | TCK50A | TCK56A | TCK66A |
| Swing over bed | mm | 460 | 500 | 560 | 660 |
| Swing over cross slide | mm | 170 | 260 | 360 | 400 |
| Distance between centers | mm | 350 | 350/500 | 500 | 600 |
| Spindle bore | mm | 56 | 66 | 65 | 85 |
| Bar capacity | mm | 45 | 45 | 45 | 75 |
| Spindle nose type | - | A2-5 | A2-6 | A2-6 | A2-8 |
| Spindle speed steps | - | Stepless | Stepless | Stepless | Stepless |
| Spindle speed range | rpm | 3500 | 3000 | 4200 | 2800 |
| Turret/tool post | - | 8 Hydraulic turret | 8 Hydraulic turret | 8 Hydraulic turret | 8 Hydraulic turret |
| Tool size | mm | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 |
| X axis travel | mm | 240 | 240 | 200 | 280 |
| Z axis travel | mm | 400 | 400/540 | 560 | 600 |
| X axis rapid traverse | mm/min | 18000 | 18000 | 18000 | 18000 |
| Z axis rapid traverse | mm/min | 18000 | 18000 | 18000 | 18000 |
| Main spindle motor | kw | 5.5 | 7.5 (opt.11) | 11 | 11 |
| Tailstock quill diameter | mm | 70 | 70 | 74 | 100 |
| Tailstock quill taper | - | MT5 | MT5 | MT5 | MT5 |
| Tailstock quill travel | mm | 80 | 80 | - | - |
| Tailstock travel | mm | 200 | 200/450 | 450 | 650 |
| Guide rail type | - | Slant bed linear rail | Slant bed linear rail | Slant bed linear rail | Slant bed linear rail |
| Machine weight | kg | 2600 | 2900 | 4000 | 4800 |
| Overall dimension | mm | 2500x1700x1890 | 2500x1700x1890 2600x1850x2000 | 2650x1900x1900 | 3700x2000x2100 |
Detailed Photos
COLLET/CHUCK
Standard with spring collet or hydraulicchuck, suitable for small workpiece.
TOOL POST/TURRET
Standard with 4 pcs gang type tool
post,4/6/8 station turret ar
MACHINE STRUCTURE
1.Integrated casting bed body, resistant to tension and earthquake resistance.
2.30 ° inclined bed for more convenient chip removal.
CNC CONTROLSYSTEM
Taiwan precision lead screw. Standard :GSK ,
Optional :SiemensFanuc,Syntec, Mitsubishi and others.
Company Profile
FAQ
| 1:How can I choose the most suitable machines ? |
| A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . |
| You can also send us the products drawing ,we will choose the most suitable machines for you . |
| 2: What's your main products of your company? |
| A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . |
| 3: Where is our factory located? How can I visit there? |
| A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. |
| 4. What is your trade terms? |
| A : FOB, CFR and CIF all acceptable. |
| 5: What's the Payment Terms ? |
| A : T/T ,30% initial payment when order ,70% balance payment before shipment ; |
| Irrevocable LC at sight . |
| 6: What's the MOQ? |
| A: 1 set .(Only some low cost machines will be more than 1 set ) |
