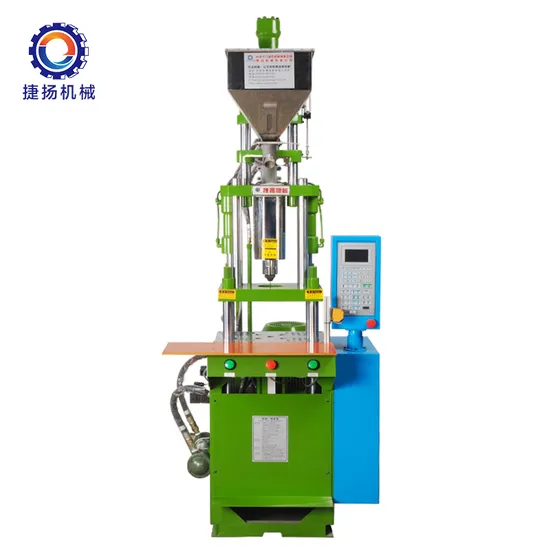

USB Date Making Injection Machines Make in China

Product Description

USB date making injection machines make in china

Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and
efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.

Parameter of Machine:

JY-160S2/JY-200S2 Technique specification
Model		Units	JY-160S2		JY-200S2
Injection System	Screw Diameter	mm	Φ26	Φ28	Φ28	Φ30
	Injection Pressure	Kg/cm2	1183	1019	1019	896
	Theoretical Shot volume	cm3	55.7	64.6	64.6	74
	Max. Shot Weight(P.S)	g/Oz	50/1.7	58/2.0	64.6/58	74/67
	Injection Rate	mm	105		105
	Max.Screw speed	rpm	0-215		0-200
	Temperature Control	ZONE	2		2
Clamping System	Clamping Force	T	15		30
	Platen Size	mm	450*280		480*310
	Distance Between Tie Bare	mm	265		285
	Min Mold Height	mm	100/25		100/30
	Opening Stroke	mm	190		180
	Max. Open Daylight	mm	290/215		280/30
	Ejector Force	T	1.3		1.3
	Ejector stroke	mm	35		35
Hydraulic System	Max. Hydraulic Pressure	Kg/cm2	140		140
	Pump Output	L	17.5		29.5
	Pump Motor Power	Kw	2.2/3HP		3.75/5HP
	Barrel Heating Power	Kw	1.8		1.8
	Total Wattage	Kw	4.2		5.5
Others	Machine Dimensions (L*W*H)	m	1.35*0.92*2.06		1.4*.90*2.37
	Shipping Measurement (L*W*H)	m	1.6*1.0*2.23		1.7*1.1*2.23
	Machine Weight	T	0.85		1.0
	Shipping Weight	T	1.0		1.3

Key Parts List
Part Name	Brand	Original of Country	Features
Computer	Star Denshi	Japan	High Precise Control, sensitive response, TFT Color display
Servo Motor	YASKAWA	Japan	Energy Saving
Electromagnetic valve/ solenoid valve	Yuken	Japan	High sensitive response
hydraulic valve	HSUTIEN	Taiwan	Longer span life
Material Cylinder	Tan Star	Taiwan	Antia brasive corrosion resistance Longer span life
Electronic parts	Schneider Fuji Fotek	France/Japan/Taiwan	Stable High sensitive
hydraulic Motor	White	USA	Low noise
Servo Pump	Eckerle	Germany	Low noise
Electrical Ruler	Gefran	Italy	High Precise Control
Tiebar	Genaral	Taiwan	High hardness
Seal	HALLITE	UK	Longer span life
Proportional rejection valve	Yuken	Japan	High Precise Control Longer span life
Oil Cylinder	Lianhuei	Taiwan	Antia brasive

Application :
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.

Youtube Vedio:
European Plug:https://youtu.be/xtM1aSLv9uw
South Africa Plug:https://youtu.be/4TSYylWwO7M
USB Cable:https://youtu.be/rReF6ysrMvE https://youtu.be/pDyWrFNPxjI
Mac wire: https://youtu.be/rReF6ysrMvE
DC wire:https://youtu.be/t5V6N71EQcQ
Network wire:https://youtu.be/iuxdJ8pjqh0

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

Welcome to inquiry us !
