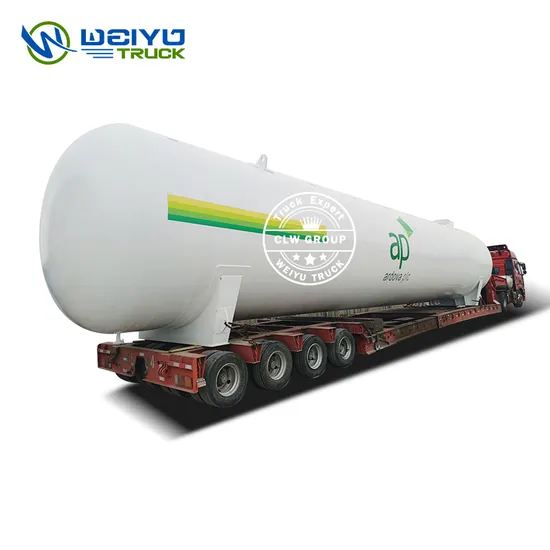

120m3 LPG Bullet Gas Tank Plant 120cbm LPG Storage Vessels 60mt Horizontal Aboveground LPG Storage Tank

Product Description

Product Description
1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina, Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
LPG storage tanks are specialized products for the storage of liquefied petroleum gas, belonging to special equipment. The material includes Q345R & Q370R, and AS-ME standard material SA516M & SA517M. The shape is cylindrical with 2 end plates. Usually, the Shell is always thicker than the end plate according to the volume of the tank. Liquefied petroleum gas is a flammable and explosive medium, so the storage tank of this medium should be strictly required during installation and use. Operators must comply with operating specifications. The production flow includes computer controlled cutting, computer controlled rolling, submerged arc welding, assembly, nondestructive testing, heat treatment, hydraulic test pressure, blasting, and paint. Perfect raw material with certificates.
Product advantage:
1. Strict quality testing: A and b class weld joint with 100 percent x-ray radiographic inspection grade ii qualified;C and d class weld joint with 100 percent magnaflux inspection class i qualifiedCorrosion-resistant coating on the tanker surface.Using sand-blasting treatment, spraying, blowing and other advanced technology.2. Standard configuration: Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires and fenders.3. Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs.
Product Specification

Parameter of 120000liters 60tons LPG Stationary Storage Tank
ITEM		PARAMETER	ITEM		PARAMETER
Volume		120cbm	Thickness of Shell		18mm
Tank Material		Q345R	Thickness of End plate		20mm
Overall Size		13820*3436*4026mm	Tank Net Weight		24960kg
Tank Diameter		3400mm	Loading Capacity		47880kg
Design Pressure		1.77Mpa	Gas Density		420kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-20ºC~60ºC	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Life time		15 years

Main details
Reference photos
Features: a) Fixed-point procurement of raw material manufacturer
b) Strictly inspection for incoming material
c) Vigorous production process
d) Nondestructive examination / 100% X-ray testing
e) Water pressure and air tightness testing
f) Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs.
Product process
We supply package solution for lpg station building as follows
Customer Inspection
Overseas After-sales Service
