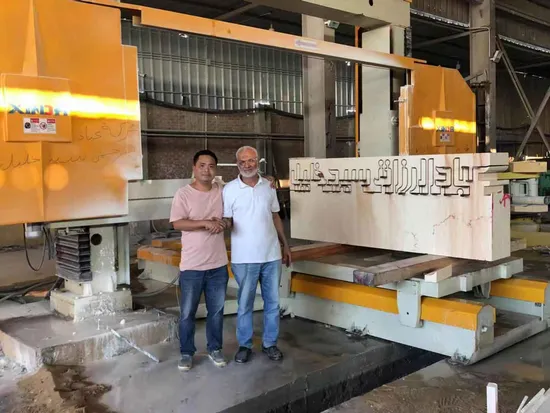

SHXJ1500 integrated type CNC wire saw shaping stone cutting machine with ce certificate

Product Description

Function:The machine is mainly used for processing the profile of marble and granite. Such as:processing the arc slabs of different specifications, solid columns, hollow columns, large stone lines and English letter, etc.
Brief introduction of SHXJ1500 wire saw machine:
1.The machine has steady structure, including top beam,two upright column,square box,hydraulic station tensioning unit,two big flywheel. Left side install a driven big flywheel and hydraulic station tensioning unit. tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire between 0-40m/s via inverter. the machine can cut different kind of stone material.
2. This machine is controlled by four axis linkage CNC system. Machine lifting and trolley movement are controlled by servo system. Guide wheel rotating adopt step system.
3. Operator can write program and enter cutting parameter in the cnc control panel. If there are any complex graphics, can draw graphics by AutoCAD and save as DXF format. the cnc system can read the DXF files and automatically make the program when put the U disk to the USB interface of cnc system.
4. Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product).
5. The machine will stop automatically and display failures on the screen if wire broken.
6.the machine has a water spray system. if no water or not enough water,the machine will automatically stop.
Technical parameters:

Parameters	SHXJ1500
Diameter of Wire	Φ8-Φ11
Length of Wire	16500mm
Speed of Wire	0-40m/s
Worktable Size	1500×2000mm
Worktable Whether Revolve	NO(Optional)
Worktable Load Capacity	20T
Range of Cutter Movement	1600mm
Max Cutting Size(L×W×H)	3500×2000×1500mm
Production Efficiency	1-2m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power	11KW
Water Consumption	3m³/hour
Overall Dimension	8200×5700×4300mm
Diameter of Guide Wheel	Φ200mm
Total Power	19.38KW
Total Weight	9T

Schematic Drawing:
Electric Cabinet& Operation Panel Photos :
Exhibition:
FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
