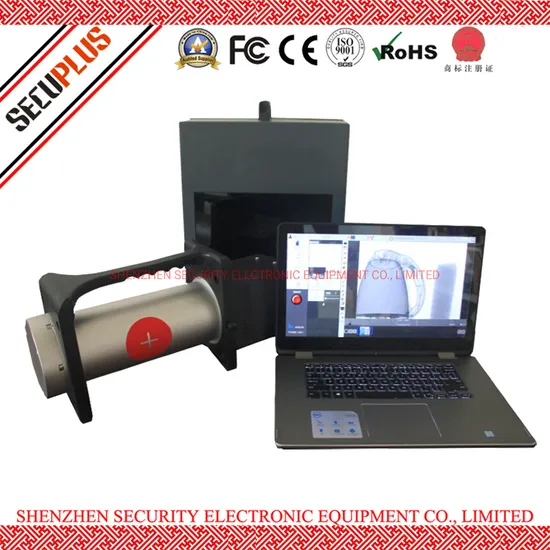

Portable X ray Baggage Scanner SPX3025P Security Screening X-ray Detector
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
SPX-3025P
Application
Security Check, X-ray inspection machine
Type
Portable X-ray Detector
Certification
CE, ISO, FCC, RoHS
Customized
Non-Customized
Alarm Form
Display Alarm
Wire resolution
40AWG (dia 0.787mm copper)
Penetration
20mm steel/150mm aluminum
Sensor type
Industrial CCD camera
Imaging array
1280*960 resolution
X ray tube voltage
100kv (120kv optional)
OEM/ODM
Accept
X ray source weight
9 Kg
Total weight
15 KG
Transport Package
Plywood Pallet
Specification
Hand Held
Trademark
SECUPLUS
Origin
China
HS Code
9022191090
Production Capacity
300 Sets/Month
Product Description
Portable X ray Baggage Scanner SPX3025 Security Screening X-ray DetectorProduct Introduction SPX-3025P portable X-ray scanner has clear image and compact and lightweight design. Using high-resolution digital imaging technology; integrated industrial CCD camera and advanced digital display system.
Applicable to security inspection, criminal investigation, smuggling and factory product quality testing.
Technical characteristics Dimensional imaging, accurate display of dangerous goods location and internal structure Dynamically capture images, support playback of dynamic video Scanning images are clear, the resolution is high and the imaging speed is fast. Use CCD industrial camera; High capacity battery life, meet the field operations Super software features: easy to achieve multi-touch gestures, physical size measurement, continuous image zoom, multi-effect image processing Security upgrades: provides X-ray delay and safety protection to ensure operator safety Modular design, easy maintenance Product Specification
| Wire resolution | 40AWG (dia 0.787mm copper) |
| Penetration | 20mm steel/150mm aluminum |
| Image station | Lenovo Flex3-14, touch screen 14.0 inches; HD LED 1366 * 768 resolution; windows 8 operating system; intel core i5-6200U; 4GB memory; 500GB hard drive; weight 1.85kg |
| Sensor type | Industrial CCD camera |
| Imaging array | 1280*960 resolution |
| Effective imaging area | 304.8*252mm |
| data communication | Wired transmission |
| Image acquisition time | 1-2s |
| X ray tube voltage | 100kv (120kv optional) |
| X ray source current | 1mA |
| X ray source weight | 9kgs |
| Image processing | Edge enhancement, super penetration, local enhancement, histogram equalization, anti-color display, black and white display, pseudo-color display, relief display. |
| Area selection and enlargement | Unlimited continuous magnification |
| Storage capacity | At least 10000 images |
| Image display | Support dynamic images |
| System function | Date / time display, historical image preview, user management, image storage and retrieval, emergency stop operation, device status display. |
| Outline Dimensions | X ray generator: 482*215*178mm (L*W*G) |
| Detection board : 462*366*164mm (L*W*G) | |
| Total weight | 15kgs |
| Operating temp. | -15ºC~+50ºC |
| Storage temp. | -40ºC~+70ºC |
| Battery | Rechargeable lithium ion battery (Supports 400 image captures) |
| Other function(optional) | Print the image and connect network |
