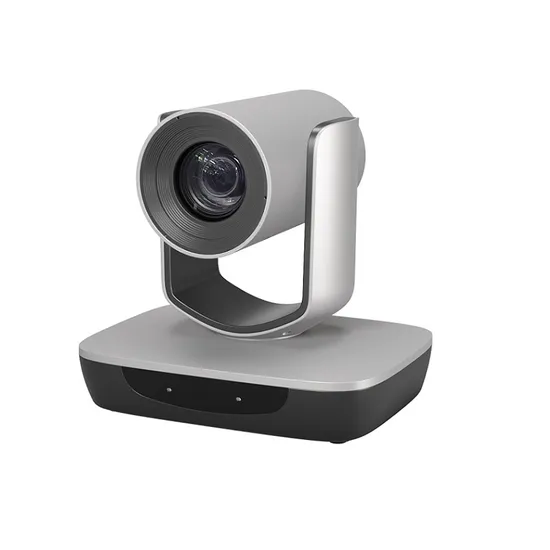

4K60fps 12X IP 3G-SDI HDMI USB Video Conferencing Camera Broadcast Studio Visual
| US$600.00-850.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AMC-G500
Digital Zoom
12X
Video Output
3G-SDI, HDMI, USB, Ethernet
Power
DC12V
Poe
Optional
Optical Zoom
20X
Ndi/Hx
Optional
Type
Video Conferencing System
Video
Video
Communication
Wired
Transport Package
Neutural Packing
Specification
CE, Rohs, FCC etc.
Trademark
WINSAFE/OEM
Origin
China.
HS Code
8525801390
Production Capacity
5000PCS/Month
Product Description
RS232 Control 4K60fps 12X HDMI IP USB PTZ Video Conferencing Camera, Visca Protocol SupportedFeatures:
- Wide 81° field of view
- USB2.0 with UVC and UAC protocols, up to 4K30 video output, and support POE
- Optional 3G-SDI or HD-BaseT video output
- Support RS-232 in, RS-232 out control interface and VISCA protocol
- 1 channel Line in
- Fast, accurate and smooth tracking
- High precision, smooth rotation, quiet PTZ
Technical Specification
| Model No. | AMC-G500(S/H) | |
| Camera | ||
| Image Sensor | 1/2.8" CMOS, 8.46MP | |
| Lens | 12X; f=3.4mm - 40.3mm; F1.8(Wide) - 3.6(Tele) | |
| FOV | 81° - 7.6° | |
| Image | Auto focus/auto exposure/auto white balance | |
| SNR | 2D & 3D DNR,≥55dB | |
| Video Output Format | 4KP60/P50/P30/P25, 1080P60/P50/P30P/25, 720P60/P50 | |
| Image Compression | H.264/H.265/MJPEG | |
| BLC/WDR | Support | |
| PTZ | ||
| Pan Angle | -130° - +130°; 0.2° - 80°/s | |
| Tilt Angle | -30° - +90°; 0.2° - 60°/s | |
| Menu | Support | |
| Preset Number | 64 | |
| Video/Audio Interface | ||
| SDI(Optional) | 1x3G-SDI, support 1080P60/P50/P30/P25, 1080I60/I50,720P60/P50 | |
| HDMI | 1xHDMI2.0; Video resolution: 4KP60/P50/P30/P25, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50 | |
| Audio Input | 1 x line in, 3.5mm | |
| HD-BaseT(Optional) | 1xHDB - BaseT, support 4KP30/P25, 1080P60/P50/P30/P25, 1080I60/I50,720P60/P50 | |
| USB | ||
| USB Interface | 1xUSB2.0 | |
| Video Format | MJPEG/H.264, 4KP30/P25, 1080P30/P25, 720P30/P25, 260P30/25 | |
| Interface | ||
| Network Interface | 1x10M/100M/1000M, RJ45 POE(Optional) | |
| Video Output Format | Max. 4KP60 | |
| Image Compression | H.264/H.265/MJPEG | |
| Audio Compression | AAC | |
| Network Protocol | RTSP/ONVIF/RTMP/HTTP/TCP/UDP/RTP | |
| Dual Stream | Main/Sub | |
| General | ||
| Control Protocol | VISCA | |
| Addresses | 1-6 | |
| Power | DC12V | |
| Power Consumption | Below 18W | |
| Working Environment | Temperature: 0°C - +40°C; Relative Humidity: 10%RH - 90%RH | |
| Storage Environment | Temperature: -20°C - +60°C;Relative Humidity: 10%RH - 95%RH | |
| Dimension | 245mm x 145mm x 165mm | |
| Weight | 1.8kg | |
Our Service:
1) We'll Gurantee you 100% Satisfaction
2) Pls report us if there are any problem, we will solve it ASSP.
3) This irems comes with 2 Years warrantry
4)Shipping and handing fees are not refundable for return
5) Should you have any question or problems, please send e-mail, call us or talk with us online
Dimension
