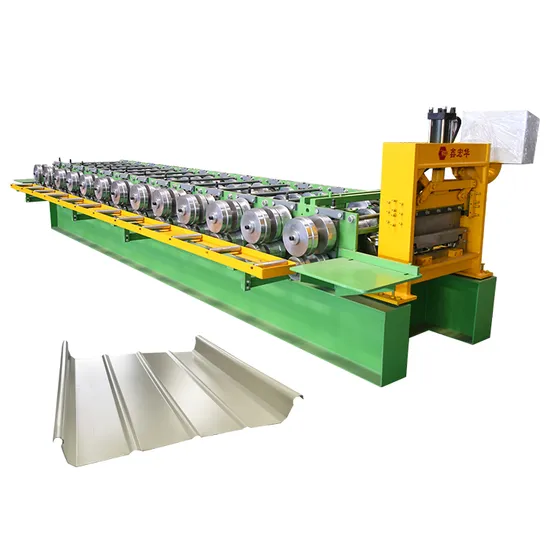

Standing Seam Metal Roofing Machine Suppliers

Product Description

Focus on roll forming machine for more than 20 year
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

Advantages of Using XHH Standing Seam Forming Machine:
1. Straight and Tapered Profile in one machine2. Smart body,available to fix in 20GP container,easy transport to the site3. Can be customized to only straight profile or only tapered profile in one machine4. Easy operation,low maintain cost

1.Roll Forming Machine (1) Material Thickness:0.3mm-0.8mm PPGI and GI (2) No.of Roller Stations:14 to 18 steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr
2.Cut-Off Device
(1) Material for Cut-off Modular:Cr12mov after treatment
(2) Hardness for Heat Treatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW

3.PLC Control Box Type:PLC Frequency Control System with touch screen
4.Profile Drawing
for YX65-300-400-425standing seam roofing300/400/425/500mm 65mm

5.Main Technical Data:
Size	YX65-400-425
Dimension	5800*1600*1500mm
Motor Power	7.5KW*2
Hydraulic Power	2.2KW
Forming Steps	13Steps
Forming Speed	8-15m/min
Voltage	380V/50HZ/3PH
Effective Width	400mm,425mm
Material Width	575mm,600mm
Height of Roofing	65mm
Aluminum Thickness	0.7-1.0mm
Steel Thickness	0.5-0.8mm
Control System	PLC Control

Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
