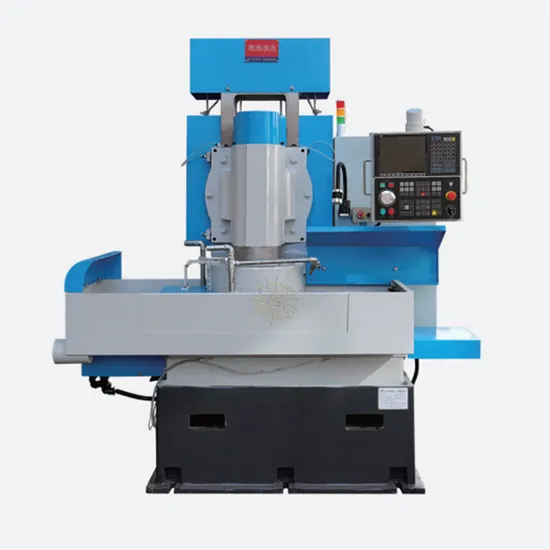

Sunglory Automatic Kitchen Knives Making Machinery Stainless Steel Cookware Knife Sets Grinder Other Surface Grinding Machines

Product Description

Product Overview
2021 new line manufacturing quality stainless steel chef knife,cuchillo de chef

--- A-Z Complete Turn-key Project Provided
FEATURES AT A GLANCE
COMPACT DIMENSIONS SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
FASTER PRODUCT
SALES AND SERVICE NETWORK
Parameters
---------------

Item	GH-3Z350	GH-3Z450	GH-3Z530
Main motor power	15KW	18.5KW	18.5KW
Main shaft rotate velocity	1551rpm	1280rpm	1024rpm
CNC system	3-axis Huazhong
Main shaft box max. travel	160mm
Knife rest valid travel	Overall travel 530mm Gindable length 350mm
Swift angle	+35° -30°
Grinding wheel specification	Barrel wheel φ355xφ275x125mm	Barrel wheel φ455xφ375x127mm	Barrel wheel φ530xφ450x125mm

Our Advantages
1. CE/ ROHS approved
2. Adopts Huazhong CNC control system:
I. Programs can generated by system with complete and valid DXF graph file upload or input manually through the panel;
II. Enable to realize the linear and circular interpolation grinding by controlling the feed amount and feed velocity of X, Z and A-axis;
III. Multiple operation modes included, Jog, Increment, Electronic hand-wheel, Automatic grinding, Automatic compensation for
grinding wheel and more functions;
IIII. Enable to grind bevel and plane angle of blade with once clamping
With correct parameter setting to the system, precision error caused by the gap of ball screw can be reduced or eliminated, quality stability and uniformity of mass production can be ensure.
Successful Project
Project in Turkey Project in India Project in India
Why Choose Us
Why Choose Us
Services ----------- Pre-sale Service
1. Popular design, new trend information sharing.
2. Return of investment analysis.
3. A-Z solution flow chat design.
4. Production process design and feasibility study.
5. Machines line arrangement.
In-sale Service
1. Machines and molds quality control during manufacturing and after finish.
2. Independent verification for each process.
After-sale Service
1. Plant layout proof & production line positioning.
2. Production line installation & debugging.
3. Training after shipment in buyer's factory.
4. Annual visit on site.
Upgraded Service
1. Market trend & latest fashion broad casting.
2. Continuous & systematic training for management, maintenance team & operators.
3. Back up for the regular production.
4. Support in new R&D realization.
