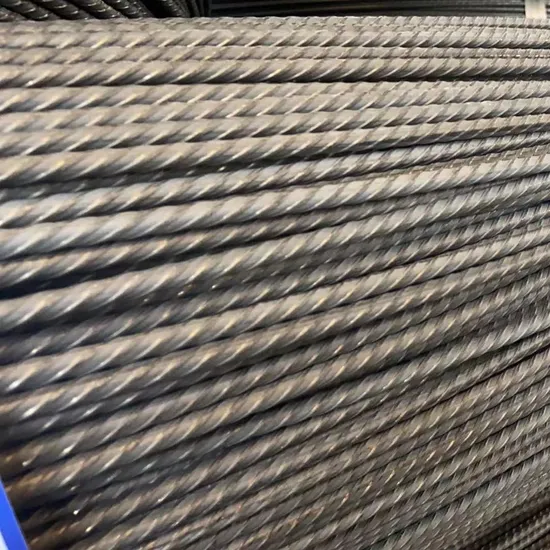

4.80mm Helical Ribbed PC Wire for Kenya Electric Poles

Product Description

2.50-2.64-2.80-3.00-3.20-3.40-3.80 1770MPa spiral ribbed/indented/smooth PC Wire
4.00-5.00-6.00-7.00-8.00-9.00-10.0 1770MPa spiral ribbed/indented/smooth PC Wire
Pre-stressed Wire / Pre-stressing Wire / PC Wire / LRPC Wire/ HT Wire / HTS Wire
Description: steel wire for pre-stressed concrete (PC Wire), steel wire for pre-stressing of concrete (PC Wire), pre-stressed concrete wire (PC Wire), pre-stressing of concrete wire (PC Wire), low relaxation wire (LR Wire), stress relieved wire (SR Wire), high tensile steel wire (HTS Wire), high tensile strength wire (HTS Wire), high carbon wire (HC Wire), high carbon steel wire (HCS Wire)
Standards: ASTMA421-2010, ASTM A648, ASTM A821, ASTM A881, AASHTO M 204-2014, AS 1310:1987, ABNT NBR7482, BS5896-2012, CSN 42 6448-1988, EN10138-2: 2009, EN ISO 15630-2019, GB/T5223-2014, IS 1785 Pt.1-1983, ISO 6934-1991, JISG3536-2014, JIS G 3538-1994, KSD7002-2019, KSD ISO6934-2014, NEN3868-2001, NF A03-720-1:2010, SNI 1155-2011, SIS SS 21 25 22-1987, TCVN 6284-1997, TIS 420-1997, UNE36094-1997, UNE 36814:2003 IN
Diameter: 2.5mm, 2.64mm, 2.8mm, 3.0mm, 3.2mm, 3.4mm, 3.8mm, 4mm, 4.2mm, 4.8mm, 5mm, 6mm, 7mm, 7.5mm, 8mm, 9mm, 10mm, 11mm, 12mm
Raw Material: High carbon steel wire rod SWRH77B, SWRH82B and other grade.
Type: hard drawn wire, cold drawn wire, plain wire, smooth wire, spiral ribs wire, spiral ribbed wire, helical ribs wire, helical ribbed wire, indented wire, indentation wire, triple indented wire, two sides indented wire, four sides indented wire, Belgan indented wire, Von Moos indented wire, lintel indented wire, crimped indented wire.
Tensile Strength: 1470MPa, 1570MPa, 1670MPa, 1770MPa, 1860MPa etc.
Relaxation: Initial load at 70% breaking low, Relaxation on 1000 hours: 2.5% max
Lo=200mm, Min Elongation at breakage: 3.5% min
Packing Method: in coils / rolls, by baling strips and plastic cloth
Packing Size: big coils 2200-2300mm, small coils 600-800mm
Package Weight: 700-900ks, 1000-1300kgs, 2200-2500kgs
Application: electricity concrete poles, railway sleeper, subway track board, concrete piles, beams, girders, slabs, hollow floor board, double-T board, PHC, PPCP, cement pipes, mattress etc.

Diameter (mm)	2.5 3.0 3.2 3.4 3.8	4.0 4.8 5.0 6.0 7.0	7.5 8.0 9.0	10.0 11.0 12.0
Grade (MPa)	1770-1860	1670-1770	1570-1670	1470-1570

Technical Specifications and Parameters
Diameter (mm)	Tolerance (mm)	Tensile Strength Min (MPA)	Yield Strength Min (σp0.2/MPA)	Elongation at breaking load (Lo=200mm) Min (%)	Bending Times Min	Bending Radius R/mm	Relaxation Value
							The relaxation at 1000h (Initial load to 70% of breaking load) Max (%)
3.0	±0.04	1670 1770 1860	1470 1560 1640	3.5	4	15	2.0
3.2
3.4
3.8
