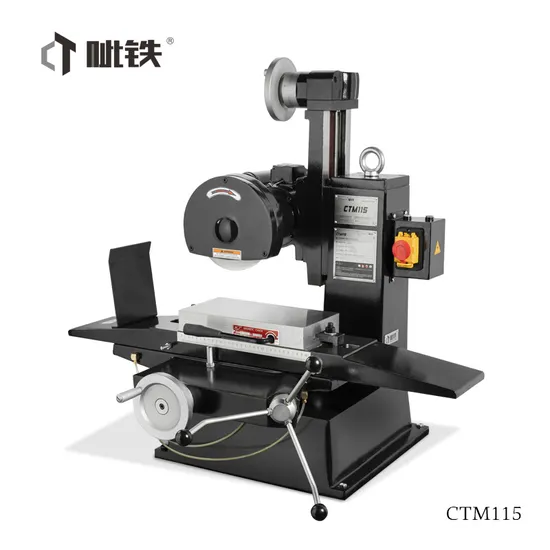

Universal Grinder and Universal Reamer Bit Grinding Machine for Various Tools
Basic Info.
Model NO.
CTM115
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
930*840*970mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Maximum cutting amount shall not be greater than | 0.03mm |
| Maximum linear speed of grinding wheel | 35m/s |
| Work table size | 152x304mm |
| Maximum grinding height | 210mm |
| Longitudinal stroke | 340mm |
| Lateral stroke | 170mm |
| T-slot of worktable (number×parameter) | 1-12mm |
| Grinding wheel size | 180x32x13mm |
| Vertical feed per graduation | 0.025 |
| Lateral feed per graduation | 0.02 |
| Motor power | 550w |
| Net weight | 210kg |
| Dimensions | 930x780x730mm |
| Package Size | 1100x760x860mm |
