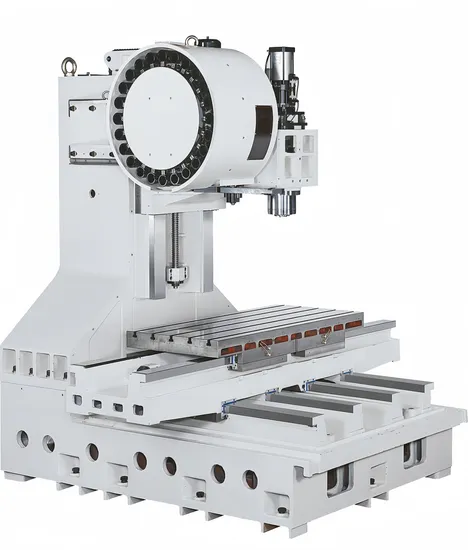

Dgwynn Fv Series Heavy Cutting Vertical Machining Center Machine

Product Description

Product Description

FV Series
Heavy Cutting Vertical Machining Center
Product Features
. The size of the column is larger than that of the general model to improve the processing rigidity.
. The joint surface of the base is enlarged and widened, and the column structure is inverted "T" type design, which improves the stability of the joint surface of the column and the base to ensure the best processing stability.
. The sliding seat of the spindle head is widened and thickened, and the sliding surface of the spindle head and the column is increased to achieve a high rigid structural proportion. With the best counterweight balance design, the problem of gravity drop of the spindle head can be avoided, and the mechanical accuracy and stability can be improved.
. The servo motor and the ball screw are directly driven, and the three-axis drive does not pass through the timing belt. The servo motor directly drives the ball screw, and there is no need to repair and replace the timing belt.
--------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Parameters

		FV850	FV1060	FV1270	FV1370	SV1580
Maximum Load Bearing	kg	600	900	1100	1200	1500
X/Y/Z Axis Travel	mm	800×500×550	1000×600×600	1200×700×600	1300×700×650	1500×800×700
Movenment Speed	m/min	36/36/24	36/36/24	30/30/20	30/30/20	30/30/20
Spindle Specifications		BT40	BT40	BT50	BT50	BT50
Spindle Speed	rpm	8000	8000	8000	8000	8000

Cutting Inspection
