Heavy Construction Machinery Hydraulic Crawler Excavator Ze245 for Sale

Product Description

Xuzhou Zhongjun Import & Export Co., Ltd. (hereinafter referred to as Zhongjun) was established in 2015. The company is located in Xuzhou City, Jiangsu Province, the capital of China's construction machinery. The company operates various new and old construction machinery equipment, including excavators, cranes, tower cranes, dump trucks, loaders, bulldozers, rollers, mixer trucks, concrete pump trucks, rollers, graders, etc.
We are good at integrating industry resources and provide high-quality products to customers around the world with many years of international trade experience. At present, the company's products have been sold to Thailand, Vietnam, Russia, Kazakhstan, Nigeria, Saudi Arabia, Ecuador and other countries.
We are committed to providing customers with valuable products and services, establishing a win-win cooperative relationship with customers, establishing a good reputation and reputation, and bringing you value and benefits through cooperation with Zhongjun.
Zhongjun is your loyal and intelligent partner!

ZE245 Crawler Excavator Technical Parameters
Engine	Model	QSB7
	Type	169kW
	Emission standard	China 3
	Inhale	Turbocharging
	Number of cylinders	6-cylinder
	Bucket capacity	1.3m³
	Rated power	169 kW/2000 RPM
	Working form	Electronic fuel injection ECO control engine

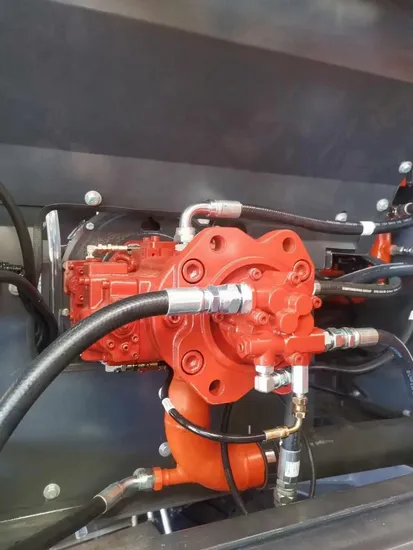

Main pump	Model	K5V140
Walking	Model	TM40
Hydraulic system	Main pump type	Variable displacement piston pump
	Form of walking hydraulic motor	Axial piston type × 2
	Rotary hydraulic motor form	Axial piston type × 1
	Working hydraulic oil circuit (Mpa)	Standard 32.4/Supercharged 34.3
	Walking hydraulic circuit (Mpa)	32.4
	Rotary hydraulic circuit (Mpa)	27.5
	Number of boom cylinders x cylinder diameter x stroke (mm)	2-120×85×1245
	Bucket rod oil cylinder - number x cylinder diameter x stroke (mm)	1-135×95×1538
	Bucket consists of - number of cylinders x cylinder diameter x stroke (mm)	1-120×80×1050
Scope of work	Maximum excavation radius (mm)	9910
	Maximum excavation radius of the parking surface (mm)	9735
	Maximum excavation depth (mm)	6625
	Maximum excavation height (mm)	9660
	Maximum unloading height (mm)	6810
	Maximum vertical excavation depth (mm)	6045
Host size	Total transportation length (mm)	9900
	Total transportation width (mm)	3200
	Total transportation height (mm)	3000
	Ground clearance of counterweight (mm)	1105
	Total length of track (mm)	4440
	Track shoe width (mm)	600
	Track gauge (mm)	2390
	Minimum ground clearance (mm)	480
	Minimum turning radius of working device (mm)	3570
	Rear turning radius (mm)	2990
Oil capacity	Fuel tank (L)	360
	Hydraulic oil tank (L)	240
	Engine oil change quantity (L)	20
	Coolant (L)	48
Performance	Rotation speed (rpm)	12.5
	Walking speed (km/h)	5.5/3.2
	Ground voltage ratio (Kpa)	46
	Bucket excavation force (kN)	136.9/144.8
	Excavating force of boom (kN)	97.9/103.8

Why Choosing ZHONGJUN
Q1: How long is the Warranty for ZHONGJUN product?
A1: ZHONGJUN provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually ZHONGJUN producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have
stock and could delivery immediately.
Q3: Can ZHONGJUN provide customized products? OEM products or ODM products?
A4: Yes, ZHONGJUN can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard
products, welcome your special reqeust.
Q4: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
