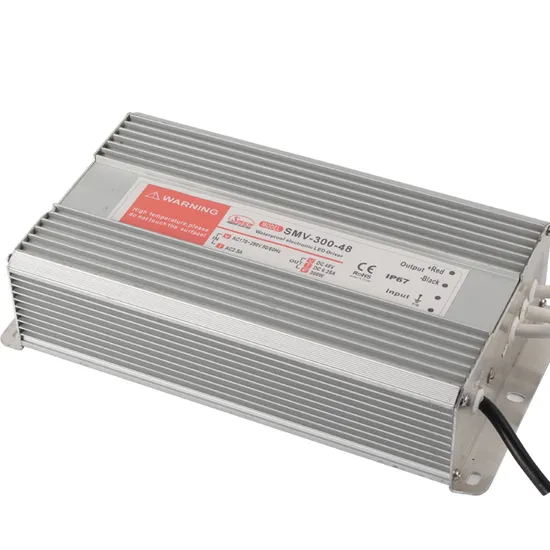

300W 48V 6.3A Constant Voltage Switching Mode Power Supply SMPS
Basic Info.
Model NO.
SMV-300-48
Driving Method
LED Regulator Voltage
Circuit Structure
PWM Controlled
Certification
CE, RoHS
Power Supply Mode
Constant Voltage Source
Modulation System
PWM
In-Out
Step-down Type
Power Supply Voltage
AC85-265
Pack Sealing Size
235*120*55mm
Brand
Smun
Material
Al Cover
Input
170~264VAC 47~63Hz
Input Current
2A/230V
Power
300W
Output
48VDC 6.3A
Weight
2.8kg
Size
235*120*55mm
Waterproof Level
IP67
Working Temperature
-25~+50 Degree C
Safety Standard
En60950 UL60950 GB4943
Transport Package
Standard Exporting Cartons
Specification
CE ROHS CCC ISO
Trademark
smun
Origin
China, Zhejiang Province
HS Code
8504401400
Production Capacity
1000PCS/Day
Product Description
Our company is a high-tech company specialized in designing. R&D. Production and sale, The products"Switching Power Supply" are with the characteristics of the low price, High efficiency, high reliability, long lifetime and so on. Our products are widely used In industrial automation field, indoor and outdoor LED lighting, LED lighting projects, Communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded Product to replace traditional controlling transformer.The design of this series of products is in accordance with such international standards As American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.
| SMV-300W LED driver water-proof power supply | ||||
| Model NO. | OUTPUT | Tolerance | range | efficiency |
| SMV-300-12 | 12V,0-25A | ±1% | 150mV | 85% |
| SMV-300-15 | 15V,0-20A | ±1% | 150mV | 86% |
| SMV-300-24 | 24V,0-12.5A | ±1% | 150mV | 87% |
| SMV-300-48 | 48V,0-6.3A | ±1% | 150mV | 88% |
| AC input voltage range | 170-260vac 47-63hz | |||
| input current | 2.0A/230V | |||
| AC inrush current | Cold-start current 60A/230V | |||
| Leakage current | <3.5mA/240VAC | |||
| DC adjustable range | ±10% rated output voltage | |||
| Over load protection | 105-150%cut down output, auto-recovery | |||
| Water-proof degree | IP67 | |||
| set up, rise,hold up time: | 100ms,50ms 20ms | |||
| withstand voltage: | I/P-O/P:1.5KVAC 1Minutes I/P-FG:1.5KVAC 1MInutes O/P-FG:0.5VAC 1minutes | |||
| working temperature | -20~+60°C,20-90%RH | |||
| weight/packing: | 2.8kg | |||
| Size | 235*120*55MM | |||
| certificate | CE ISO9001 ROHS | |||
| Warranty year | 2 years | |||
| Protections | Short circuit / Over load / Over voltage | |||
