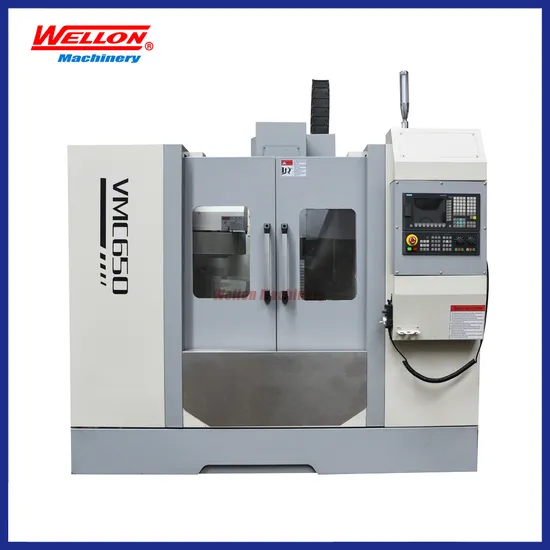

Wellon 3 Axis CNC Vertical Machining Center Vmc650
Basic Info.
Model NO.
VMC650
Application
Glass
Process Usage
CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
X Axis Travel
600
Y Axis Travel
500
Z Axis Travel
500
Spindle Nose to Worktable
120-620
Spindle Center to Column
550
Leadscrew Diameter X,Y,Z
40
Worktable Length
800
Worktable Width
500
Max Loading Capacity
400
Transport Package
Wood
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Production Capacity
200 PCS/Month
Product Description
Detailed PhotosMain configuration & accessories:
1Resin sand casting, Meehanite HT-300;
3X, Y, Z rails adopt stainless steel telescopic cover;
4Roller type linear guideway from Taiwan
5Ball lead screw from Taiwan
6Standard with belt driven spindle, optional for direct driven spindle;
7pneumatic cylinder;
8Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10Import coupling;
11Headstock Nitrogen balance system as option;
12Full enclosed cover;
13Rigid tapping;
14Spindle center ring blast;
15Work lamp;
16Pilot lamp;
17USB and Internet interface;
18Manual pulse generator (MPG);
19entralized automatic lubrication system.
20Cooling system.
21Heat exchanger for electrical cabinet ;
22Leveling blocks & bolts;
23Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Product Parameters
| Item | Unit | VMC650 |
| Capacity | ||
| X axis travel | mm | 600 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 500 |
| Spindle nose to worktable | mm | 120-620 |
| Spindle center to column | mm | 550 |
| Leadscrew and guideway size | ||
| Leadscrew diameter X,Y,Z | mm | Φ40 |
| Linear guideway width X,Y,Z | mm | 35/35/35(Ball) |
| Worktable size | ||
| Worktable Length | mm | 800 |
| Worktable width | mm | 500 |
| Max loading capacity | kg | 400 |
| Spindle | ||
| Spindle taper | BT40 | |
| Spindle speed | rpm | 8000 |
| Main motor power | kw | 5.5/7.5 |
| Feeding system | ||
| Fast moving speed (X/Y/Z) | m/min | 36/36/36 |
| Cutting speed | mm/min | 1-10000 |
| Feed motor power | N/M | 8/8/12 |
| Tool Magazine | ||
| Capacity | pcs | Umbrella 16 |
| Max tool diameter | mm | 100 |
| Max tool weight | kg | 6 |
| Max tool length | mm | 250 |
| Accuracy | ||
| Positioning accuracy | mm | 0.008 |
| Repeat accuracy | mm | 0.005 |
| Machine dimensions | ||
| Length | mm | 2800 |
| Width | mm | 2200 |
| Height | mm | 2800 |
| Weight | kg | 3900 |
Standard accessories:
GSK control system
Taiwan Spindle: 8000rpm belt type
16 tools ATC Umbrella type
3-Axis linear guideway from Taiwan Hiwin,
Ball leadscrew from Taiwan,
USB interface
Rigid tapping
Full closed cover
Automatic lubrication
Coolant system
Work lamp
Heat exchanger in cabinet
Tri-color indication lamp
Air gun+Water gun
MPG
