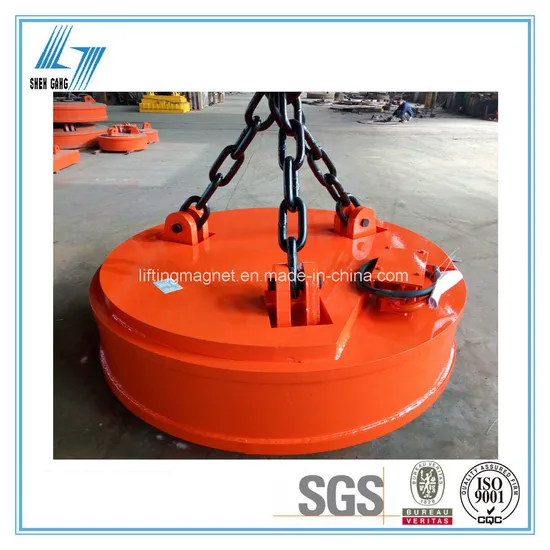

Dia-1800mm Circular Lifting Electro Magnet Suiting for 16t Crane

Product Description

Application:
Lifting magnets are used for lifting and transporting iron scraps,ingots,steel chips,slabs,steel plates and steel sheets. We have both types that are suitable for installing with excavator and crane; And we also have electro lifting magnet that can be submerged under water. The electro lifting magnet can be used at very high and normal temperature in metallurgical plants, scrap yards and ship-building plants.
Option:
There are three excitation options: Rated voltage DC220V; Strong excitation; Over excitation.Consists of Lifting Magnet, Cable Reel, Control Cabinet, Cable Connector etc.
Complete sets of equipment:
--lifting magnet: MW5-110L/1
--rectification control cabinet: DKP-4
--cable reel: JTA75-15-2
--quick coupling: DKL-50
Overall Dimension Drawing:
Complete set of Equipment:
· Lifting magnet
· Spring type cable reel with cable
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type)
· Cable connector / Quick coupling
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about its loading capacity).
(More details, please feel free to contact us directly. )
Technical data:

Model	Electric current (A)	Cold-state power (kw)	lifting capacity (kg) cold/hot state			Mass (kg)	Overall dimension (mm)
			steel ball	cast iron	steel scrap		A	B	C	D	E
MW5-70L/1	15	3.3	2500	380/200	120/100	490	700	800	160	90	30
MW5-80L/1	18	3.96	3000	480/250	150/300	620	800	800	160	90	30
MW5-90L/1	26.6	5.9	4500	650/440	250/200	800	900	1090	200	125	40
MW5-110L/1	35	7.7	6500	1000/800	450/400	1350	1100	1140	220	150	45
MW5-120L/1	45.5	10	7500	1300/1000	600/500	1700	1200	1100	220	150	45
MW5-130L/1	54	12	8500	1400/1100	700/600	2010	1300	1240	250	175	50
MW5-150L/1	71.2	15.6	11000	1900/1500	1100/900	2830	1500	1250	350	210	60
MW5-165L/1	75	16.5	12500	2300/1800	1300/1100	3200	1650	1590	370	230	75
MW5-180L/1	102	22.5	14500	2750/2100	1600/1350	4230	1800	1490	370	230	75
MW5-210L/1	129	28.4	21000	3500/2800	2200/1850	7000	2100	1860	400	250	80
MW5-240L/1	154	33.9	28000	4800/3800	2850/2250	9000	2400	2020	450	280	90

Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
Customer Visit:
Standard Packing:
Angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response: We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
