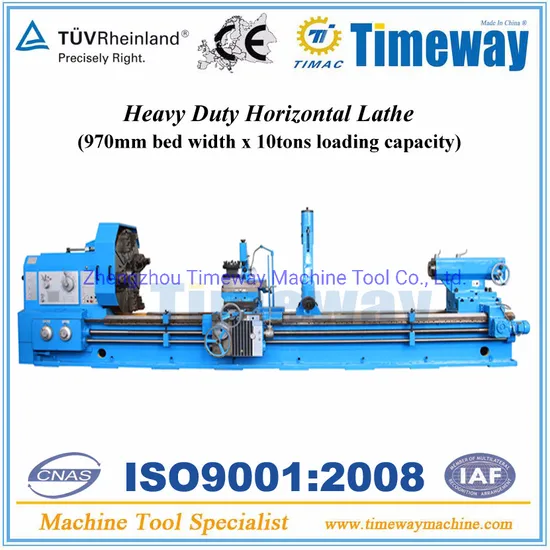

Heavy Duty Horizontal Lathe Machine (970mm Bed width & 10Ton Loading)

Product Description

Heavy Duty Horizontal Lathe
1. Large swing 1250/1400/1600mm; 2. Bed width 970mm; 3. Max. workpiece weight 10tons; 4. 3m-18m length;
Features:
1. This series heavy duty lather adopts 970mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with max. bearing 10tons between centers.
2. The main spindle is of precision roller bearing 3-point supporting structure
3. Saddle guide ways with belt coated, rotating tailstock quill structure to minimize friction and heat generation.
4. The machine are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces, and turning of metric or inch threads, modular threads and diametrical pitch threads, etc.
5. Motorized short taper turning could be done by the top slide independently, and long taper's motorized turning could be done by top slide combined with longitudinal feed.
6. Further more, these lathes can also carry out drilling, trepanning and boring processes, etc.
Standard Accessories:
4jaw chuck, Steady rest,Follow rest, 4 positions tool post, Dead center, Manual tailstock, Center sleeve, Coolant system, Work light, General tools, Foundation bolts and screws, Operation manual(English edition), etc.

Optional items:
**Big center rest
**Big center bracket
**Motor driven tailstock and tailstock with rotary quill
**Chuck guard, tool post shield, cable carrying chain

Specification			Unit	AL-1250C	AL-1400C	AL-1600C
Capacities	Swing over bed		mm	1250	1400	1600
	Swing over carriage		mm	865	1010	1210
	Max. length of workpiece		mm	3000/4000/5000/6000/8000/10000/12000/14000/16000/18000
	Max. length of turning		mm	2800/3800/4800/5800/7800/9800/11800/13800/15800/17800
	Width of bed		mm	970
	Max. torque of spindle		N.m	12590
	Max. cutting force		N	45000
	Max. force of longitudinal		N	18000
	Max. weight of workpiece		kg	10000
Spindle	Dia. of spindle thru hole		mm	130
	Taper hole of spindle			Metric 140
	Number of forward turning			21kinds
	Number of reverse turning			12kinds
	Spindle speed	Forward	r/min	3.15~315
		Reverse		3.5~291
Feed motion	Number of feeds per revolution			(longitudinal/transverse)56/56
	Feed per revolution	Longitudinal	mm	0.1~12(0.004"~0.473")
		Transverse	mm	0.05~6(0.002"~0.236')
		Upper tool-post	mm	0.025~3(0.001''~0.118")
	Number and range of metric thread		mm	44kinds; 1~120mm
	Number and range of inch thread		TPI	31kinds; 28~1/4TPI
	Number and range of module thread		mm	45kinds; 0.5~60mm
	Number and range of diametrical pitch thread		DP	38kinds; 1/2~56DP
Tool post	Size of tool shank		mm	45x45
	Tool post swing range			±90°
	Max. travel of carriage		mm	2900/3900/4900/5900/7900/9900/11900/13900/15900/17900
	Max. travel of cross slide		mm	650
	Max. travel of top slide		mm	300
	Rapid of tool post		mm/min	Longitudinal:3740, Transverse:1870, Top slide:935
Tailstock	Dia. of tailstock quill		mm	220
	Travel of tailstock quill		mm	300
	Taper hole of tailstock quill			Morse No.6#
Others	Main motor power		kw	22
	Speed		r/min	970
	Power of tool post		kw	1.5
Machine overall dimension	Length		mm	6020/7020/8020/9020/11020/13020/15020/17020/19020/21020
	Width		mm	1995
	Height		mm	2175	2325	2525
	Machine weight(AL-1250C)		kg	14500/15800/17000/18300/20000/21500/25000/27000/-
	Machine weight(AL-1400C)		kg	15000/16300/17500/18800/20500/22000/25500/27500/-
	Machine weight(AL-1600C)		kg	15500/16800/18000/19300/21000/22500/26000/28000/-
