Plastic PE HDPE PPR Water Gas Oil Supply Pipe Extrusion Production Line Single Screw Extruder Pipe Making Machine

Product Description

Anxing machinery professional Plastic pipe machinery supplier with 20 years of experience in plastic machinery
China local HDPE PE PPR pipe plant.
Product Description
The 2 layer PPR HDPE pipe making machine /HDPE pipe extrusion machine /HDPE pipe production line can be used for HDPE large diameter gas and PPR water pipes, with excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance, creep resistance, hot link, etc. Therefore, the PE HDPE Pipe Machine is the preferred gas and water pipe for the pipeline system between the city and the suburbs, and the large-diameter HDPE pipe line began to play a very important role in the urban water supply and gas supply system.

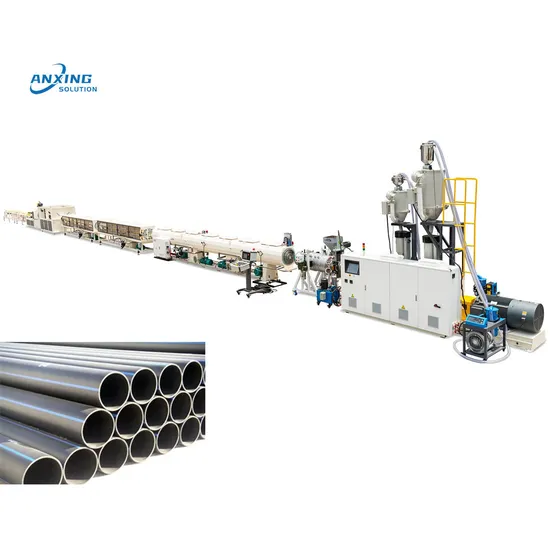

It's mainly composed by conical single screw extruder, mould, vacuum calibration tank, haul off machine, cutting machine, stacker, belling machine.
By changing dorn or mould lip, it can produce several diameter or wall thickness on same machine.
Product Parameters
Main parameter for plastic pipe making machine

Extruder Model	Pipe Diameter	Motor Power	Length	Pipe Pressure Rating	Capacity
SJ65/33	16~63mm	37kw	25m	0.6~1.6mpa	70~150kg/h
SJ70/33	16~90mm	45kw	25m	0.6~2.5mpa	80~180kg/h
SJ65/33 High Speed	16~110mm	75kw	30m	0.6~2.5mpa	150~300kg/h

Our Advantages
plastic PPR PE pipe production line
1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.2. Our machine has one year guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.3. If the buyer has any problem during the operation, we will offer technical solutions.
For different diameter range pipe,will be equipped with corresponding different production lines.we can supply PE pipe production lines for diameter:16mm,20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm,125mm,160mm,200mm,250mm,280mm,315mm,355mm,400mm,450mm,500mm,550mm,630mm,710mm,800mm,900mm,1000mm,1100mm,1200mm.each different pipe production line will include:vacuum loader+hopper dryer+single screw extruder+mould+vacuum forming tank+spray cooling tank+haul off machine+cutting machine+stacker
Anxing machinery Plastic PPR HDPE pipe machine for water supply pipe
singlescrew extruder for plastic PVC pipe
9meter vacuum and cooling calibration table
2 claw /3 claw /4 claws customized haul-off machine
planetary cutter for plastic pipe machine
HDPE PE PPR Pipes
Loading and shipping for HDPE PE PPR pipes production line
If you have any inquiry about plastic pipe project, welcome to contact us
