Central Seal Stand up Zipper Pouch Making Machinery

Product Description

Youtube Video Link

https://youtu.be/j_jW-nhD3Jg	3 Servo driven Stand Up zipper pouch making machine with Quad seal / Double lines/Double winder
https://youtu.be/o_qV-Zgt3pE
https://youtu.be/xvl0g8XAT5w	2 servo driven stand up zipper bag machine (video was taken by Turkey customer in his factory)
https://youtu.be/eOpUSIkBJS0	1400mm three side sealing bag making machine with Double winders
https://youtu.be/v2jo5zMkJ-s	central seal Quad seal Four side seal Pouch Making machine
https://youtu.be/aN0KN3XexIE	air sickness Clean bag paper bag making machine
https://youtu.be/idHWJJZu2f4	Shaped Pouch Making Machine
https://youtu.be/n4ZpM7ZP1m0	Grape Pack Pouch Making Machine
https://youtu.be/VE-Ciiopev8	Sterilization medical paper pouch making machine

Product Description
Features For Stand up Zipper Pouch Making Machinery
:
1. Suitable for kinds PE laminated film ,Paper Laminated, Alu. Laminated,and co- extrude film
2. To produce three side seal bags, stand up pouch,zipper pouch,
3. EPC and double photocell tracking for unwinder
4. Unwinder with automatic tension control
Bags You can make on Stand up Zipper Pouch Making Machinery :
1.3 sides sealing bag
2. Centra sealing bag
3. Centra sealing and gusset
4. Sand up bag
5.Four Side Seal bags
6.zipper bags
Main Technical Parameters For Stand up Zipper Pouch Making Machinery

Model	BHZD--600	BHZD-500
Max.Diam eter of roll material	600mm	600mm
Max.width of roll material	1200mm	1000mm
bag size width	70-600mm	70-500mm
bag size length	70-380mm x N ( N≤6)	70-380mm x N ( N≤6)
bag-making speed	30-150pcs/min	30-150pcs/min
Speed will be changed according to your bags
Temperature control	Normal temperature to 3600C	Normal temperature to 3600C
Total power	35kw	32kw
gas resource	0.6mPa(6kg/cm2 )	0.6mPa(6kg/cm2 )
Cooling water	5L/min	5L/min
Machine weight	6000kg	5500kg
outline diameter	L11505*W2400*H1865mm	L11505*W2300*H1865mm

Optional:
1) Double layer unwinder device
2) Punching device for handle
3) shaped pouch device

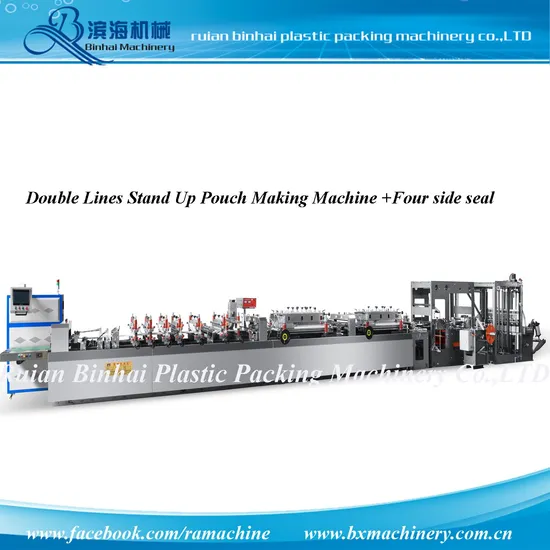

Detailed PhotosPictures of Stand up Bag Making Machine
--- machine in the picture is specially for central seal bags which is higher speed . we also have model both make central seal and three side seal bags.
This picture is for Three Side Seal Pouch Making Machine , which can make both three side seal pouch and central seal pouch
with Double winders .
1) PLC language of Standard central seal bag making machine is English / Chinese .
2) If needed , we can input your language .
3) CE certificate of central seal bag machine
4 ) Need one 40 feet container
machine pictures of Zipper Pouch Stand up Bag Making Machine
Bag Samples
Packaging & Shipping
Packing and shipping
Machines will Packed with Waterproof oil , stretch Film
If need , Fumigation wooden case as option
Delivery date: 35days after receipt of down payment.
Shipment from Ningbo port ,China By Sea
CertificationsCE , ISO , CO , etc Certificates ., If need other certificates , should tell us before shipping .
we shipped to USA, Turkey , Portugal , Span , Croatia ,Moldova , Colombia,Tailand , Indonesia ,United Arab Emirates.Russia ,IRAN , Ukraine , Bangladesh ,india,Sudan , Mexico , Africa ,Angola, Kenya , Algeria ,Ghana and other cities around the world.
Rich export experience , help to make perfect customs documents.Company Profile
FAQ
Are you a factory or Trading Company
We are a factory with experienced exporting products. We also help clients
To look for products which they can not sure of.
Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai .
We are pleasured to pick up you when you arrived .
How you work if I am not come to China
Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation
to show that we are a true exist company,
Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas
on machines , we will discuss with engineers to offer you a well resolution .
When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse
to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .
The Whole Shipping Process We will keep in Touch with you by Email or Whatsapp .
IF Have more questions , Contact with me !!!
THE ENDING of Central Seal Stand up Zipper Pouch Making Machinery...........THANKS FOR YOUR READING
