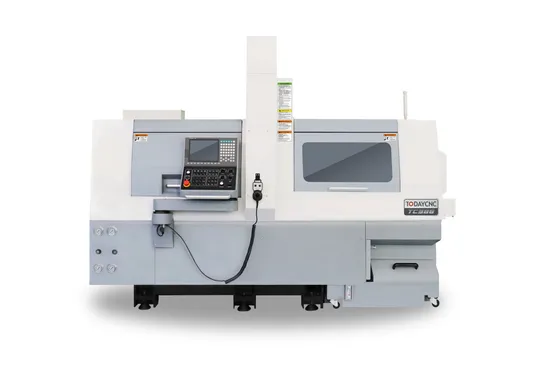

High Precision and High Rigidity Swiss CNC Lathe Machine

Product Description

Product Description
Model: TC386
System available: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN etc.
Double spindle
6-axis function
Max machining diameter: 38mm
Motor spindle
Features
* Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.* Built-in electric spindle,hydraulic clamping,ensure high precision machining.* Main spindle clamping is compatible with both Push forward and pull back modes, not necessary requires large diameter grinding materials.* Main spindle primary processing length is 320mm with guide bush.* Main spindle side milling adopts ER25+ER20 with 2.3 high-power motors, combined with the spindle hydraulic brake, to improve milling efficiency and rigidity.* Main spindle tool holder adopts rectangular-ambulatory-plane layout,reduce machine volume,enhance the rigidity of the tool holder structure, and achieve fast tool change speed. Layout
Case study

Product Parameters

Model			TC386-1
			6-axis,dual spindle
NC system			SYNTEC 220TB
Lathe rated power		kw	25
Machining range
Maximum machining diameter		mm	φ38
Maximum machining length (one-time clamping)With guide bush		mm	320
Maximum machining length (one-timeclamping)Non guide bush		mm	85
Main/sub spindle
Main spindle power		kw	10
Sub spindle power		kw	10
Main spindle max through hole dia		mm	φ42
Main/sub spindle rev speed		rpm	6000
Sub spindle max clamping dia		mm	φ38
Sub spindle max through hole dia		mm	φ42
Max tool installed qty		mm	30
Main spindle tool
OD Turning tool	Qty x Model		6*φ16+3*φ20
Side- Live tool	Qty x Model		3*ER20+1*ER25
	Drilling dia	mm	φ16
	Tapping/Threading die dia		M8
	Live tool rev speed	rpm	5000
	Live tool power	kw	2.3
End face fixed tool	Qty x Model		7*ER20
	Drilling dia	mm	φ13
	Tapping/Threading die dia		M10
Angular drilling head			--
Axial drilling and milling tool			--
Sub spingdle tool
OD Turning tool	Qty x Model	mm	2*φ16
End face fixed tool	Qty x Model	mm	5*ER20
	Drilling dia	mm	φ13
	Tapping/Threading die dia		M10
Side- Live tool	Qty x Model	mm	3*ER25
	Drilling dia	mm	φ16
	Tapping/Threading die dia		M8
	Live tool rev speed	rpm	5000
	Live tool power	kw	2.3
Angular drilling head		mm	--
Axial drilling and milling tool		mm	--
Rapid feed speed		m/min	18(X1) 24(X2/Y1/Y2/Z1/Z2)
Feed motor power		kw	1.7
The power capacity		kva	25
Air pressure device		mpa	0.6
Weight		kg	4800
Dimension		mm	3000*1450*2200
