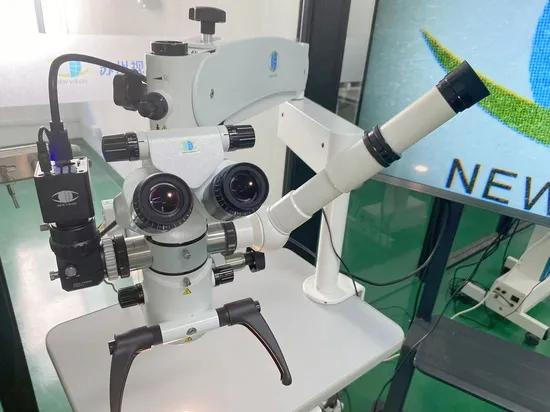

New Vision Portable Surgical Microscope Wetlab Microscope

Product Description

Wetlab Microscope
Portable Ophthalmic Surgical Microscope with digital system and teaching tube
Model: OMS2650
CE & FDA
Highlights: German Optical Lenses with Multi-layer coating Lenses are made of Schott ® , Germany which reduce the optical aberration. All of lenses are apochromatic, multi-layer coated and anti-reflective. Easy and Comfortable Operating 180 degree inclinable binocular Inclinable binocular features widest articulation range of any binocular for operator comfort. Widefield Eyepieces The widefield eyepieces are screwed in to the tube and have integrated eyecups with stepless adjustment. The eyepieces are excellently suited for surgeons who wish to work with their eyeglasses on. Rotatable handgrip Rotatable handgrip can be adjusted to user's preferred position and enable the user to easily place the Microscope in the desired position. Ergonomic foot panel Without distraction and interruption, you can conveniently adjust the light intensity, level of focus, and recover focus position. Comfortable LED illumination Brilliant red reflex, natural colors, more contrast as well as lower energy and maintenace costs, and no harmful IR or UV radiation for the patients. Specifications:

Eyepiece Magnification	12.5X widefield eyepieces
Objective Lens	f=200
Diopter Adjustment	±7D
Pupil Distance	54mm~76mm
Magnification	5 Steps by drum rotation
Steps of Magnification (y)	0.4X, 0.6X, 1X, 1.6X, 2.5X
Total Magnification	4.3X, 6.8X, 10.6X, 16.9X, 26.5X
Field of View diameter	52mm, 33mm, 21mm, 13mm, 8.3mm
Focusing	Motorized, focus range 40mm; 5 optional objective lenses: F200;
Illumination Source	LED with life time > 60, 000 hours
Filter	Red free, Retinal Protection filter
Foot switch	yes
Input Voltage	AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz
