Livestock Feed Machine Poultry Feed Making Machine Chicken Feed Pellet Mill Machine

Product Description

Livestock Feed Machine Poultry Feed Making Machine Chicken Feed Pellet Mill Machine Product Description

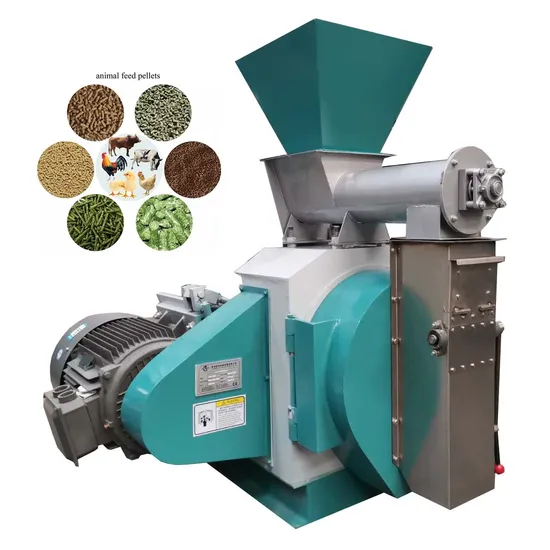

CM Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.
- Features of pellet making machine
1. CM series ring die pellet mill reaches international advanced level; it has the latest technology and low breakdown rate;
2. Drive mechanism adopts high strength belt, with steady running and low noise;
3. Drive mechanism adopts high quality bearing to ensure high speed and stable operation;
4. Feeding part is equipped with a permanent magnet to remove metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment.
5. Convenient operation, reliable sealing, high production rate, low power consumption, low labor strength.

CM A series
Parameter/Model	CM -15A	CM-20A	CM-25A
Output(kg/h)	100-200	500-700	1000-1200
Power (kw)	3	11	22
Revolving Speed of ring die (r/min)	420	306	306
Inside diameter of ring die(mm)	150	200	250
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	0.75*0.45*0.8	1.1*1.15*1.25	1.1*1.15.1.25
Weight(kg)	175	500	625

CM B Series
Parameter/Model	CM-20B	CM-25B	CM-30B
Output(kg/h)	500-700	1000-1500	1500-2000
Power (kw)	11	22	30
Feeding motor(kw)	0.75	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside diameter of ring die(mm)	200	250	304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.5*1.52	1.1*1.15*1.25	1.35*1.3*1.6

spare parts of animal feed pellet machine
Raw Material of pellet mill
Final Pellet of feed Pellet Machine
Complete Production Line

Item	Feed Pellet Production Line
Suitable Raw Material	corn, maize, grass, grains, molasses, wheat, beans etc.
Feed application	poultry, livestock and aqua animals like: cattle, pig, sheep, shrimp, fish, pet etc.
Technical Parameters	- Capacity: 0.5t/h-2t/h - Dimensions: Designed according to specific requirements.
Features	- Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy. - Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control. - Stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency. - High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.

Different capacity Feed Pellet Production line
Company Introduction
Zhengzhou Leabon Feed Machinery Co., Ltd. is a professional and advanced supplier which mainly supply feed equipments like feed crusher,mixer,pellet machine,granule crumbler,feed pellet cooler, packing and entire feed pellet production line.With rich experience for many years.
Our Advantages
1.Customized products and packaging;
2.24-hours online inquiring support.
3.One year warranty but without the spare parts.
4.Video and technical guidance.
5.Show our factory and support video inspection.
6.Free raw material test service.
7.Engineers available to service machinery overseas.
FAQ
Q:I know very little about this machine, How should I make a choose?
A:please tell us your specific requirement, we will offer the most appropriate model for you,you can contact us at any time.
Q: What if the spare parts are broken?
A:For each machine,we will have several parts that can be replaced, have a three years warranty on the core parts.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:Yes,we have one year warranty for our products.
Q:If the machine has a little mistake when produce and can not solve,what should i do?
A:Please contact us immediately,by email,WeChat,or telephone,our worker will give you the solution.
CE Certification
Click Send to get the Customized quotation of animal feed pellet machine
