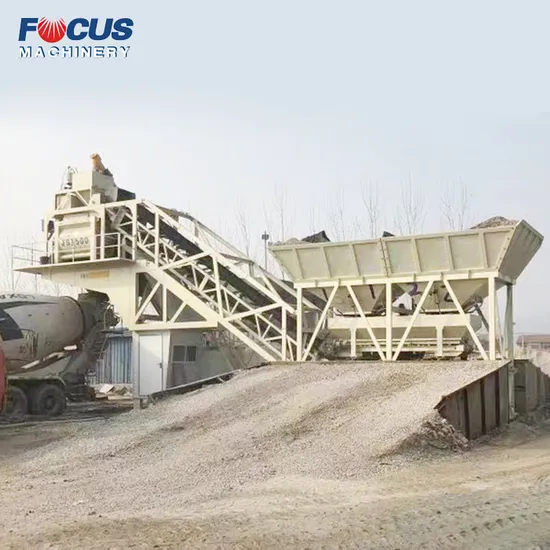

High Quality Mobile Concrete Batching Plant (YHZS75) with Favourable Price

Product Description

High Quality Mobile Concrete Batching Plant (YHZS75) with Favourable Price
∑Installation Video of Mobile Concrete Batching Plant:
micfocus.en.made-in-china.com
∑Advantages of FOCUS Mobile Concrete Batching Plant:
1.Complete mobile unit, easily transported
2.Reliable and consist mixing performance,precise dosing...
3.High quality, good after-sale service
∑Sizes of Mobile Concrete Batching Plant:
YHZS25(25cbm/h) mini small mobile concrete batching plant,
YHZS35(35cbm/h) mini small mobile concrete batching plant,
YHZS50/60(50-60cbm/h) small mobile concrete batching plant,
YHZS75(75cbm/h) small mobile concrete batching plant
∑Why would our clients choose FOCUS mobile concrete batching plant?
1.FOCUS MACHINERY boasts an award-wining small mobile concrete batching plant product range with capacity from 25cbm to 75cbm hourly.
2.This series of small mobile concrete batching plant adopts semi-pulling structure with running system and equipped with standard coupling pin, hence can be dragged by a tractor at the maximum speed of 40km/h.
3.As uniquely and compactly designed it is, this small mobile concrete batching plant assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing.
The mobile concrete batching plant is the ideal concrete plant for projects that require frequent removal from one site to another.
∑FOCUS Mobile Concrete Batching Plant Technical Parameters:

Model		YHZS25	YHZS35	YHZS50/60	YHZS75
Output capacity		25m³/h	35m³/h	50-60m³/h	75m³/h
Overall power		40kw	60kw	85kw	105kw
Discharge height		3800mm
Max. hauling speed		40km/h
warranty		13months after commissioning
After-sale service		Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer		JS500	JS750	JS1000	JS1500
Motor power		18.5kw	30kw	18.5kw×2	30kw×2
Max. aggregate dia.		80mm
Aggregate batcher		PLD800	PLD1200	PLD1600	PLD2400
Aggregate weighing precision		±2%
Aggregate feeder		Belt conveyor
Other scale scope	Cement	±1%
	water	±1%
	additive	±1%
Control system		Auto computer control, 1 set
Pneumatic system		1 set

∑What are the main features of FOCUS mobile concrete batching plant?
1. It is composed of the systems of material supply, weighing, mixing and electric control;
2. Its discharge height is 3.8m, and it can mix various types of concrete;
3. With the loader to feed material, it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;
4. With electronic scales to measure and the mixing host is twin-horizontal-axis type;
Electrical system is equipped with IPC, printer and so on to realize the centralized control and overall management;
5. With the functions of real-time display, information storage and automatically equalizing the fall during the production process;
It can be controlled by computer and manually, and then can be easily converted through the switch;
6. The modular design is convenient for the containerized transport;
With the optimized design of the concrete batch plant, it can be overall transferred by the towing vehicle.
