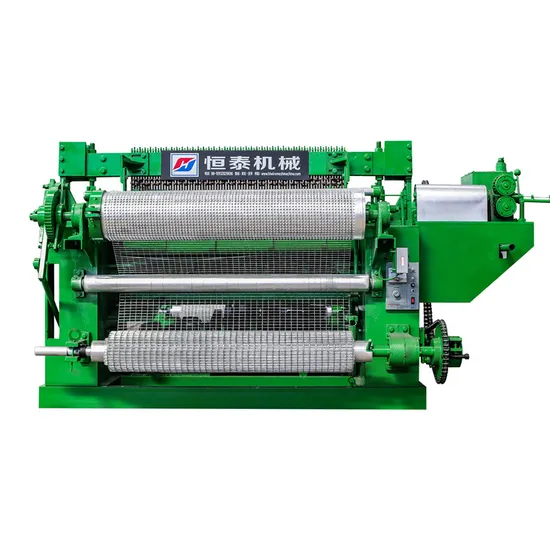

Full Automatic Welded Wire Mesh Machine in Rolls Price /Electric Spot Mesh Welding Machine Factory
| US$8,600.00-13,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HT-1500
Voltage
380V
Style
Horizontal
Warranty
1 Year
Wire Diameter
0.8-2.7mm
Mesh Size
1/4"-1/2" 1′′-5′′
Welding Width
914-2100mm(According to Your Requirements)
Power
85kVA*4
Speed of Welding
90-120times/Min
Exterior Size
3100X1700X1400mm
Transport Package
Plastic Bag and Pallet
Specification
wire diameter: 0.8-2.7mm
Trademark
Hengtai
Origin
China
HS Code
8463300000
Production Capacity
20sets/Month
Product Description
Full Automatic Welded Wire Mesh Machine in Rolls/Electric Spot Mesh Welding MachineWelded Wire Mesh Machine
We can supply welded wire mesh machine for producing of welded wire mesh of a wide range of mesh counts and sizes.
Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1/2"-4".
Size of mesh (mm) | 12.7-101.6 (1/2"-4") |
Width (mm) | 914.4-1219.2 ( 12"-48") |
Diameter of wire (mm) | Dia.0.63-Dia.2 ( BWG23-BWG14) |
Max. rolled net size (mm) | 120 (400') |
Welding speed ( mesh/minute) | 65 ( radia) |
Power | 380/220V 50-60HZ 50KWAx4 |
Outside size(mm) | 2600x1700x1350 |
Peculiarity: Big box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh of big width & wire dia.
Size of mesh (mm) | 25.4-152.4 (1"-6") |
Width (mm) | 1219.2,1524,1828.8 (48", 60", 72") |
Diameter of wire (mm) | Dia.1.07-Dia.2 ( BWG19-BWG14) |
Max. rolled net size (mm) | 91.4m (300') |
Welding speed ( mesh/minute) | 45 ( radia) |
Power | 380/220V;50-60HZ;50KWAx6 |
Outside size(mm) | 3350x1800x1400 |
Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity. Used for welding net of wire diameter 0.45, diameter 1.07, mesh 1/4" -1/2".
Size of mesh (mm) | 6.35-12.7 (1/4"-1/2") |
Width (mm) | 914.4-1219.2 (12"-48") |
Diameter of wire (mm) | Dia.0.45-Dia.1.07 ( BWG25-BWG19) |
Max. rolled net size (mm) | 120m (400') |
Welding speed ( mesh/minute) | 75 ( radia) |
Power | 380/220V;50-60HZ;50KWAx4 |
Outside size(mm) | 2350x1820x1700 |
The Warranty
1. With one year guarantee, and the good after-sale service. We can arrange our worker to your country to install the machine or we can record the whole process about the installion of the machine to ensure the machine installtion.
2. As per your special requirements which are also welcome to discuss.
Payment Terms
1.30% T/T in advance, 70% payable against the copy of the B/L
2. L/C is also acceptable
3. As per your special requirements which are also welcome to discuss.
