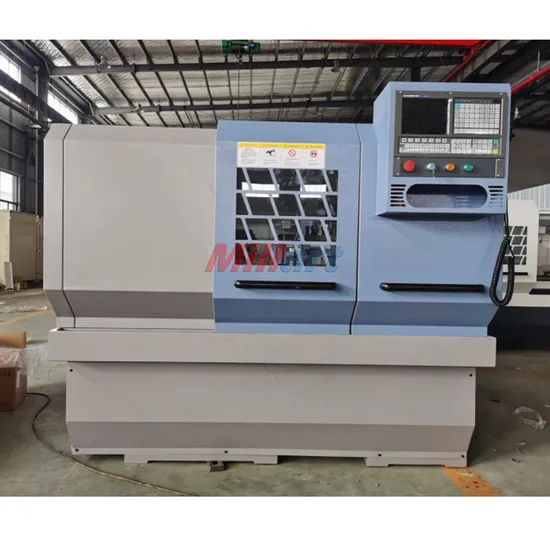

Metal CNC Turning Lathe Machine Ck6136 Small CNC Lathe for Sale
| US$8,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6136
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Plywood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8458110090
Production Capacity
100 PC/Month
Product Description
Metal CNC Turning Lathe Machine CK6136 Small CNC Lathe For SaleProduct Description
1.Independent spindle , high precision ,lower noise , saving energy and protect environment
2. High speed and precision bearing, spindle smooth finish good. High precision ball screw
3.High stability one- piece machine bed, higher rigidity cast iron.
4.High frequency quenching rail, hardness and high wear resistance. Frequency conversion, stepless speed regulation. Integrated automatic lubrication
Product Parameters
| Model | CK6132/750 |
| Max. swing over bed | Φ360mm |
| Max. swing over cross slide | Φ160mm |
| Max. processing length | 750mm |
| X axis travel | 180mm |
| Z axis travel | 750mm |
| Distance between centers | 750mm |
| Spindle bore | 48mm |
| Spindle speed | 150-2000 rpm |
| Spindle nose | A2-6 |
| Spindle motor power | 4.0 kw |
| X/Z axis position accuracy | ±0.01mm |
| X/Z axis repeatability | ±0.005mm |
| X/Z axis rapid feeding speed | 10/10 m/min |
| X/Z axis drive motor power | 1.5 kw |
| Tool post type | 4 station electric turret |
| Tailstock sleeve dia. | Φ65mm |
| Tailstock sleeve travel | 140mm |
| Tailstock taper | Morse 4 |
| N.W. | 1350/1500kg |
| Machine dimension (L*W*H) | 150*170*185cm |
Configuration
GSK980TDi Control system
3-jaw chuck(Φ160mm)
4-station Electric tool turret
Manual tailstock
Work lamp
Coolant system
Automatic lubrication
Standard safety cover
Leadscrew cover
Dead centre(MT3)
Centre sleeve(MT4/3)
Paddings
One whole set spanner
Oil gun
Tool box
Operation manual
