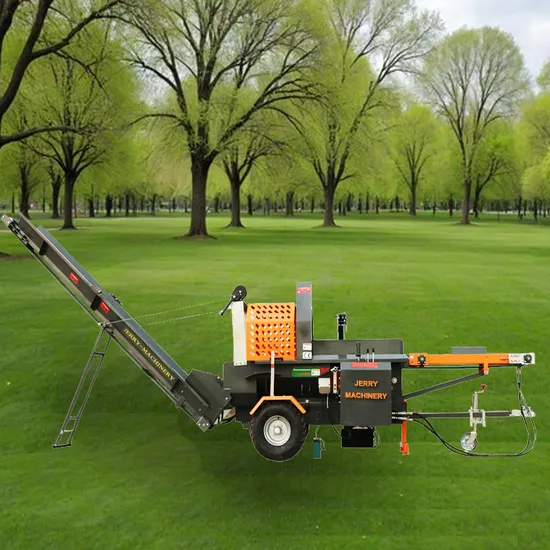

20t Firewood Processor Wood Splitting Machines Timber Cutting Machine

Product Description

Contact us and you will receive a free brochure.Packed with product information, inspiration, and more ways to Live the Wood Life with Jierui Machinery Equipment Co.,Ltd.
Product Parameters

Firewood Processor JR480D-20T
Performance	Max splitting power	20T
	Max splitting length	Standard 610mm (24 inch)
	Max cutting & splitting diameter	480mm (19 inch)
	Cycle time	8-12S
	Work efficiency	4-7CBM/H
	Wood fixing	Hydraulic
	Saw cutting	Joystick with solenoid valve
	Saw lubrication	Automatic by hydraulic system
	Splitting	Automatic
	Splitting wedge	4 way (height adjustable)
Machine assembly	Engine	18HP LIFAN gasoline (electric start)
	Pump	20GMP (2-stage)
	Splitting cylinder	3.15"x24"x2"
	Hydraulic oil tank	100L
	Feeding conveyor	2400*200mm
	Rear loading conveyor	3200*250mm
	Tyre	22x11-10
	Traction	50mm ball couple
Packing	Size	2300x1250x1750mm
	Weight	980KG
	Loading Q\ty	7/16 pcs (20GP/40HQ)

Product Description

Jierui Machinery are proud to unveil our new range of firewood processors,
After years of being in the forestry industry a processor, has always been in the works. The JR480D is our 20ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard.
The JR480D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard.
We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head.
The processor has a 50mm tow hitch for towing around the yard or working area.
Product Details

Hydraulic automatic log clamping Automatic feed conveyor system
Setting the length of firewood Fully automatic control system
Both 4-way and 6-way are supported

Log lifter-JR100 Log table-JR200
Automatic safety protection device We use STIHL chain saw guides and

Splitting wedges can be adjusted up or down chains imported from Germany
