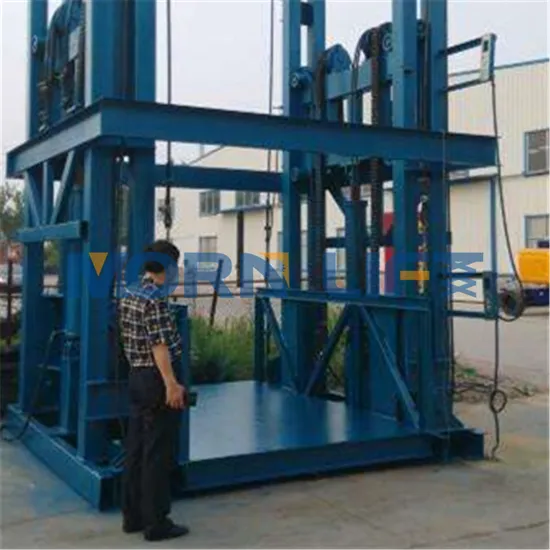

Super Heavy Duty Cargo Lift for Warehouse Goods Lifts with Heavy Cylinder

Product Description

Hydraulic heavy duty cargo elevator Product application Cargo Lift Platform is widely used in indoor or outdoor workplaces of the buildings and warehouses, lifting goods or pallets among different vertical floors. It's mainly used to provide fast, efficient, convenient and safe access for goods to reach mezzanines, basements, and any levels in multi-storied buildings.
Main model list for your reference

Model	Lifting height	Capacity	Platform size	Pit depth
LRL 3-2.4	2.4M	3T	2.0*2.0M	300 MM
LRL 2-5	5.0M	2T	2.1*1.2M	200 MM
LRL 1-4.5	4.5M	1T	2.1*1.5M	200 MM
LRL 5-6.5	6.5M	5T	2.2*1.6M	300 MM
LRL 3-6.5	6.5M	3T	2.2*1.9M	300MM

hydraulic cargo lifts are available upon request. please send us your interested parameters, lift height, load capacity and platform size. As follows. Custom lifting solution will be offered accordingly.

Main parts as follow

Anti-skid platform	The plaform is made of Q235B which is 17% harder and stronger than the ordinary steel, so its service life could be up to 50 years.
PLC system	PLC will program as per customer's needs and memorize the instructions you insert before. In this way, you don't need to input the instructions repeatedly.
Limit switch	Limit switch is a kind of industrial control component. When the platform touch the limit switch which is installed on post, it will stop in its max height. When the limit switch installed under the platform touch the ground, it will stop immediately in its min height.
Digital panel	Each digital panel has emergency stop button and floor buttons. When you want to arrive at a certain floor, just press the certain button. And the screen will show the action of the machine.
Interlocking system	Under the control of interlocking system, the door would be locked when the lift is working. And the doorwould be open only when the power cut off.
Mesh Enclosure	The whole machine is fully covered by mesh enclosure. It could prevent people from injuring by the dropped goods.

Technology Flows

	Engineer Design Technical designers will design the drawing papers according to the customers' requirements. It will avoid any misunderstanding and provide the most suitable cargo lift for each customer.
	Laser Cutting Machine Make the parts more precise and the surface smooth and fine. Lay a good foundation for the following steps.
	Shot blasting facility Put the lifter into the shot blasting facility, and many mini steel balls would be shot to the surface. Make the surface smooth and easy to be painting.
	Powder Coating Spray the dry powder on the surface of lifter, then put the lifter into the high-temperature facility which is up to 200 degree. In this way, the painting is endurable and the surface is rust-proof.

Professional factory
Jinan Sinicmech Machinery Co., Ltd. (MORN GROUP) is a professional hydraulic lift platform manufacturer and is also the biggest producer in northern China. MORNLIFT product category covers scissor lift table, goods lift, aerial work platform, home elevator, loading dock ramp and dumbwaiter with standard models and customizable parameters. We have exported our machines to Australia, Bangladesh, USA, India, Singapore, Jordan, Vietnam, South Africa, Dubai, Germany, Thailand and so on. Totally more than 100 countries. In March 2018, MORN Group was invited to participate inthe Big 5 Heavy Exhibition in Dubai.
Packing&Shipping
Packaging details for goods elevator:
1. Film package to prevent humidity and rust.
2. Iron frame to keep warehouse goods lift stable in container.
3. Plywood to prevent warehouse goods lift from colliding. Convenient for forklift delivery.
Delivery time: within 30 working days after we receive the payment.
Why choose us
1. Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every lead rail lift must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 5 years warranty for main structure and 1 year warranty for electrical parts.
