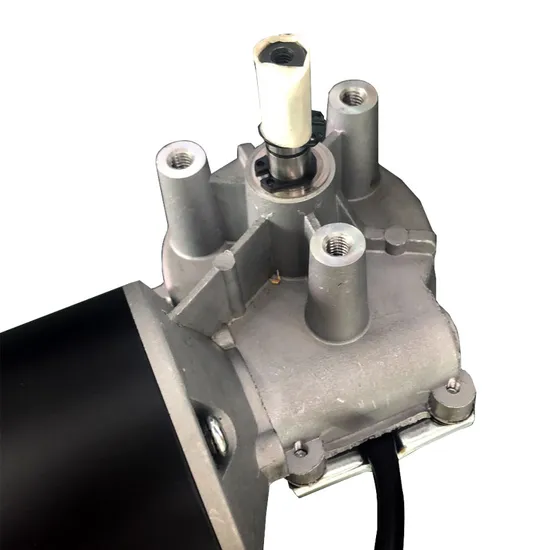

24V 30rpm DC Low Rpm Worm Gear Motor 30nm 50nm Torque Electric Adjustable Bed Motors

Product Description

24V 30RPM Dc Low Rpm Worm Gear Motor 30nm 50nm torque Electric Adjustable Bed Motors
Main characteristic:

Motor Diameter	49mm 59mm 63mm 76mm 88mm 110mm
Motor Power	45w, 65w, 95w, 120w
Voltage	12V,24V, 36v, 48v
Output speed	60-220rpm
Gear ratio	75:1 60:1 60:2 60:4
Gear Modulus	75:1 M=0.8 60:1 60:2 60:4 m=1
Torque	30N.M
Motor length	77mm, 85mm, 97mm
Motor Advanture	1.Low noise < 60db 2.Long life span > 4000hr(continuously working) 3.Self-locking & Forward & Reverse 4.Competitive factory price 5.Sample order are welcome

Products Type	Voltage	Power	No Load		Load			Gear ratio	Motor length
	V	W	Speed	Current	Speed	Current	Torque
			RPM	A	RPM	A	N.M		mm
D76L -2445-150	24	45	150±5	≤1.0	130±5	≤3.5	≥3.3	1:20	77
D76L -2445-180	24	45	180±5	≤1.2	150±5	≤4.5	≥4.5	1:20	77
D76L -2445-210	24	45	210±5	≤1.5	180±5	≤6.5	≥6.0	1:20	77
D76L -2465-150	24	65	150±5	≤1.0	130±5	≤3.5	≥3.3	1:20	85
D76L -2465-180	24	65	180±5	≤1.2	150±5	≤4.5	≥4.5	1:20	85
D76L -2465-210	24	65	210±5	≤1.5	180±5	≤6.5	≥6.0	1:20	85
D76L -2495-150	24	95	150±5	≤1.0	130±5	≤3.5	≥3.3	1:20	97
D76L -2495-180	24	95	180±5	≤1.2	150±5	≤4.5	≥4.5	1:20	97
D76L -2495-210	24	95	210±5	≤1.5	180±5	≤6.5	≥6.0	1:20	97

Guangzhou Wewin Motor Co.,Ltd. is a professional company specialized in design and customization of small dc worm gear motor. The motor models mainly include D49 D59 D63 D76 D88 series, and all the motors can be installed with hall sensor, encoder, opto sensor and brake,so we accept OEM and ODM orders ,and manufacture the motor according to your required like voltage, power, speed, torque, dimension and motor direction.Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State,India,Korea and so on.
Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience
3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory More Applications:
Garage door opener motor ,laundry drying rack motor, range hood motor,stand up desk motor,tennis ball machine motor ,hospital bed lift motor ,kitchen garbage disposal motor, floor polisher,truck lift,stair lift,hospital lift bed ,intelligent office furniture motor ,hydraulic pump electric forklift.
RFQ:
Q: Are you trading company or manufacturer ?
A: We are Integration of industry and trade, with over 20 years experience in worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfaction.

Q: What is your main product?-DC Motor: geared motor and micro motor without gear box
-Welding equipment: Mig mag welding machine wire feeder, Welding rod, Welding Torch, Earth clamp, Electrode holder, and Rectifier
Q: What if I don't know which DC motor I need? A: Don't worry, if you have motor pictures or drawings to show us,or you have detailed specs like voltage,speed,torque,motor size,working mode of the motor,needed life time and noise level etc,pls do not hesitate to let us know,then we can remommend suitable motor per your request accordingly.

Q:Can I get same samples? A: It depends. If only a few samples for personal use or replacement, I am afraid it will be difficult for us to provide, because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.

Q:Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousandsFor the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.

Q:Do you have individual design service for motors?
A6:Yes,we would like to design motors individually for our customers,but it may need some mould charge and design charge.
Q:How do you make sure motor quality?
A:We have our own inspection producdures:for incoming materials ,we have signed sample and drawing to make sure qualified incoming materials;for production process,we have tour inspection in the process and final inspection to make sure qualified products before shipping. Q:What certifications do you have?
A:We currently have CE and RoHS certifications. Q: How long is your delivery time?
A: Usually it takes about 35 days if you accept our standard output shaft.If the output shaft is customized,the production time depends on what the customization shaft it is.

Q:Can I visit your company?
A:Yes,welcome to visit our factory,our factory is Guangzhou Wewin Motor Co.,Ltd.The legal person is Hui Zhou,Sunny Deng's wife.
