6090 Advertising CNC Router Wood Carving Machine Price for Sale

Product Description

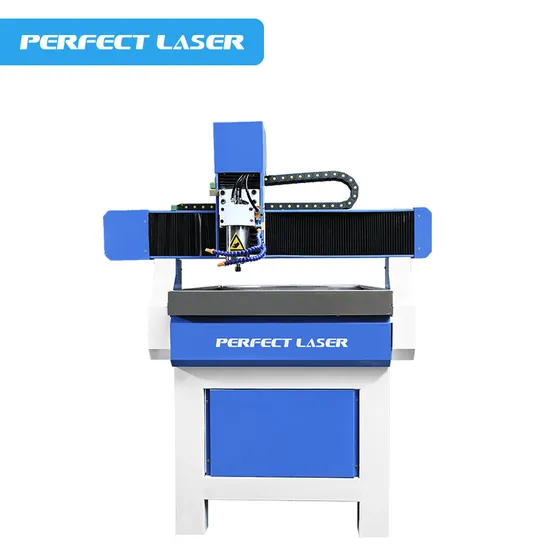

Cnc Router Wood Carving Machine Price For Sale
(Model: PEM-6090W)
Contact:Candy
Product Introduction: Perfect Laser is a world leading manufacturers for CNC router.
PEM-6090W CNC router engraver is a kind of 3 axis cnc router which is designed with pure aluminum, which ensures the parallelism and greatly increases the precision and speed of the engine bed.
This CNC router engraver is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of theCNC router engraver is calculated and customized according to optimization rules in market Statistics.
China CNC router covers main sizes of marks and labels in the market.
1.5kw CNC Router and 2.2kw CNC Router can cut through Plexiglass with thickness of 20mm one time and can be applied to large-scale relief, too.
1.5kw CNC Router and 2.2kw CNC Router is doubtlessly a perfect product in the range of advertising. For its various types, it can also be called 6090 CNC router,3 axis CNC router,CNC router engraver,china CNC router,1.5kw CNC router,2.2kw CNC router.
Samples&Application:
Advertising CNC Router is widely used in the field of Advertising board, Label design, Acrylic cutting, model of the multi material decoration products.
Which is also widely applied in engraving and cutting on all kinds of metal and nonmetal materials, such as wood engraving, wood cutting , MDF Engraving, MDF Cutting, PVC plastic Engraving, PVC plastic Cutting, plexiglass engraving, plexiglass cutting, acrylic engraving, acrylic cutting ,organic glass engraving, organic glass, etc.

Product Name	CNC Router for Advertising
Model	PEM-6090
Working Area	600*900mm
	Perfect Laser also have the ability to custom-made according to user's special demand
Table material	Aluminium Alloy
Maximum feed height	80mm
X,Y,Z Guideway rails type	Round Shape Guide Rail, Rod Transmission
Max Engraving Speed	4,000-7,000mm/min
Resolution ratio	0.002mm
Repetition accuracy	±0.02mm
Spindle power	1.5KW (Optional 2.2kw, 3kw,4.5kw)
Spindle Rotating Speed	6000 - 24,000rpm
Spindle cooling	Water Cooling
Drive motor system	Step Motor and Step Driver
Interface	PCIPort or USB Port
Memory buffer (Flash)	128MB
Engraving Command	G code, u00, mmg, PLT, HPG
Command language system	English Version, Windows 98/2000/XP Operation System
Operational Software	Original Type3 Software, ArtCam software or Wentai Software
Command language system	English Version, Windows 98/2000/XP Operation System
Software Compatibility	Support CAD/CAM software, PLT format, Corel Draw, Auto CAD
Working temperature	0-45
Relative humidity	30% - 75%

Features: 1) X, Y, Z axis use imported ball bearing guide screws. It's precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it's an ideal product for manufacturing labels, construction models and moulds in batches.
2) High speed calculation It uses DSP64 contouring control system and FPGA technology which can continually and smoothly run the three axes with high speed. It has the ability of calculation of 5000 vector/s.
3) Steble data transmission. Adopt ISA/IP DNC/IP straight technology, it associate the machine without interruption, enable no limitation of the amount of the document.
4) Double-nut guide screw .It uses Germany-imported high-precision ball bearing guide screw which can eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It uses straight line guide rail (cylinder or square), which can ensure the working life.
5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6) Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(WindowXP)
