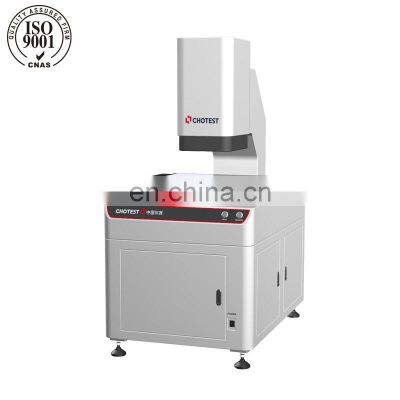

Wide Range Vision Accuracy Measurement Outer Dimensional Instrument Overall Diameter Measuring Machine

Product Description

Product Description
One-key image measurement machine VX3500 for big workpiece 1. Fast, effective1) Place the object at will without any workholder2) Max 512 features at once time3) Quick and precise measurement for batch workpieces in CNC mode.2. Accurate, consistent1) Anybody can get the consistent results by one-key operation2) Automatic focusing: Avoid deviation because of different focusing3) Automatic feature identification: Consistent results from different measurement and different operators3. Full functions, automatic report1) User-friendly software, powerful functions, simple operation2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and control charts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range chart). Model No.VX3500Image SenorIndustrial cameraMonitor24" LCD (XGA: 1920×1080)Acceptance LensDouble Telecentric LensDepth of Field25 / 2mmField of ViewLarge Field500×400mm(4 angle R50)High Precision430×330mmLightCasting Illumination SystemFour-segment illumination(White Light) & Ring directional illumination(Green Light)Transmission Illumination SystemTelecentric transmission illumination(Green Light)AccuracyWithout Stitching*1Large Field±5μmHigh Precision±2μmWith Stitching*2Large Field±(6+L/200)μmHigh Precision±(3+L/200)μmHeight Meas. (Optical probe)(Optional)Measuring Range(XY)120mm×110mmMax Hole-Depth Ratio(h/φ)1.5Dia. of BeamΦ38μmResolution0.25μmZ Non-movementRange(Z)±3.7mmAccuracy±1μmZ MovementRange(Z)70mmAccuracy±(5+0.01H)μm, H is Z moving height in mmWhether to support laser probeYesStageX Travel Range410mmY Travel Range310mmZ Travel Range250mmGlass Countertop530×430mmLoading Capacity25 kgMoving SpeedXY200mm/sZ100mm/sResolution of Glass-scale0.1μmWeight(kg)450Size(LxWxH)1250×800×1700mmMotion ControlAC servo systemSoftwareVisionX ProInput100-240VAC,50/60Hz,6APower800WWorking EnvironmentTemp.20℃±2℃, Humidity 20%~80%, Vibration<0.002g, Less than15Hz Note:*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C*2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 2 kg or less; L is the moving range of the table (mm). Based on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, VX3500 of Flash Measuring Machine achieve fast dimensional measurement by one-key operation. VX3500 are suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc. CHOTEST is a software company but also a national high-tech enterprise integrating research, development, production and sales. Committed to the design and production of precision measuring instruments and calibration instruments, image measurement machine.Since the company established, we insist on technological innovation as the basis of development. With more than ten years of development, our company has accumulated rich practical experience and established a strong professional technical team in light, machine, electronics and information technology, also owns a number of technology patents and software intellectual property rights. We have unique designing and manufacturing advantages in Micro-Nano motion, 3D Reconstruction of Micro- Nano measurement, 3D Form and Surface Analysis of Micro-Nano measurement, Large- scale 3D Measurement, Precision Sensing Probe, Control & Measurement of Glass-Scale and Guide Rail etc. That is why we have ability to provide our customers with professional precision measurement solution from nano meter to hundred meter.At present over 260 employees in our company, we got modern office in Nanshan, Shenzhen and precision machining & assembly factory in Baoan, Shenzhen. In addition, we also built a number of professional laboratories with advanced research facilities. All products are manufactured in accordance with ISO9001, 6S standard and always provide customers with top quality products.The sales network and service outlets of our company has covered more than 30 provinces in China, in the meanwhile our overseas market is also growing fast.With more than 10 years of professional technology accumulation, we designed and manufactured White Light Interferometer measurement system of, Laser Tracker of GT series, Universal Thread Measuring Machines of SJ5200 series, Universal Length Measuring Machines of SJ5100 series, SJ6000 Laser Interferometer, Profilometers of SJ5700 series, Dial Indicator Testing Machines of SJ2000 series and other high-end measuring equipment. We provide high precision measurement solution from nanometer to hundred meters.At present our products has been used widely in government Metrology and Quality Inspection agencies, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and other industries.CHOTEST focuses on technology development & innovation of precision measurement equipment and sophisticated testing equipment with motto of Self-Discipline. Our goal is to provide high-end measuring equipment to manufacturing industry in all over the world1. Are you factory?Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.2. How many years experience do you have?We have 16 years experience on measurement instruments and calibration instruments since 2002. 3. What size of your factory?We have 5000 square meters of factory and 2,000 square meters of modern office 4. Can you accept OEM and ODM?No, we only sell the products under Chotest brand. 5. Can I become your distributor of image measurement machine?Yes, please contact our sales engineer. 6. What is the lead time?Lead time is 30-60days in usual. 7. What is your payment term?30% deposit first, balance payment before delivery. We accept T/T, L/C. 8. How to install the machine?We dispatch our engineers to install and debug the machine in site of the customer. 9. What is your warranty term?We provide 1 year warranty after acceptance inspection by customer.Free repair or replacement in 1 year warranty in case of any problem.Response in 12 hours for emails or calls from customers in working days.
