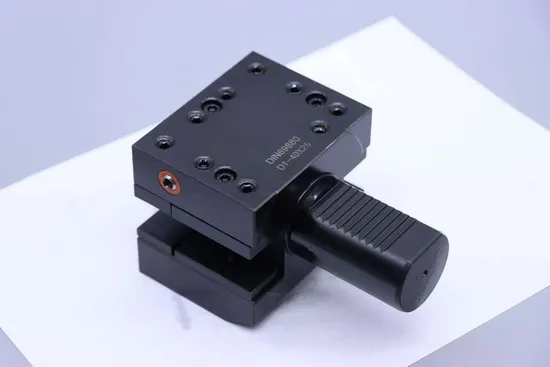

CNC Tool Vdi Tool Holder DIN69880 E1 E2 E3 E4 Collet Chuck Vdi 20 30 40 50 60 Lathe Tool Holder Vdi Holder

Product Description

Packaging & Delivery

Package Size 20.00cm * 20.00cm * 10.00cm
Package Gross Weight 3.000kg
Product Description
DIN69880 VDI 20 30 40 50 Taper shank DIN6499 ER11 ER16 ER20 ER25 ER32 ER40 Collet chuck VDI tool holders Inch balance
Product Description B6 VDI Tool Holder/DIN69880 Tool Holder
It is essential machine tool accessories for working center of CNC machine. We produce according to German DIN69880 standard, it feature developed structure, convenient and alternative etc. It can satisfy the needs of turning,drilling, boring,and milling etc. With various tool holders and allocate different types tool and accessory.
· Metric and inch dimensions are available.
· Connecting diameters are from 16mm to 80mm.
· Conform with DIN69880 standard.
· Adopt high rigidity and strength alloy steel material.
· Adjustable spray nozzle and shim.
· Suitable for various brands millturn machines.
· Left hand type, cutting blade towards up.
· Hardness are from HRC55-60.
Product advantages:1. Rich in products
2. Long service life, stable product quality and stable accuracy
3. Focus on product production details
4. The packaging is firm and beautiful
5. Can be customized

Order No.	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	l1	l2
B1-16X12X24	16	42	23	5	12	17	15	15	20	22	19	13	24
B1-20X16X30	20	55	30	7	16	22	19	19	25	30	23	16	30
B1-30X20X40	30	70	35	10	20	29	26	22	28	38	30	22	40
B1-40X25X44	40	85	42.5	12.5	25	34	35	30	32.5	48	-	22	44
B1-50X32X55	50	100	50	16	32	41	42	35	35	60	-	30	55
B1-60X32X60	60	125	62.5	16	32	41	46	42.5	42.5	62.5	-	30	60

Our Services 1.OEM service
2.Quick responce in 24 hours
3.Big capacity
4.Short delievery time.
Packing & De livery

FAQ
1. Are you factory or Trade Company?
We are a CNC manufacturing factory
2. Could you supply samples?
Yes, we can supply.
3. Where do you export?
The whole world.
4. Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5. What's the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.
6. What are the shipping ways?
By international express, by air, by sea are all ok.
7. Do you have minimum order quantity?
Conventional Products don't have. The minimum order quantity of non-standard products is 50pcs.
8. What's your payment way?
T/T, Pay pal, Western Union and so on.
9. What's your delivery time?
5-20 days after order confirmed
