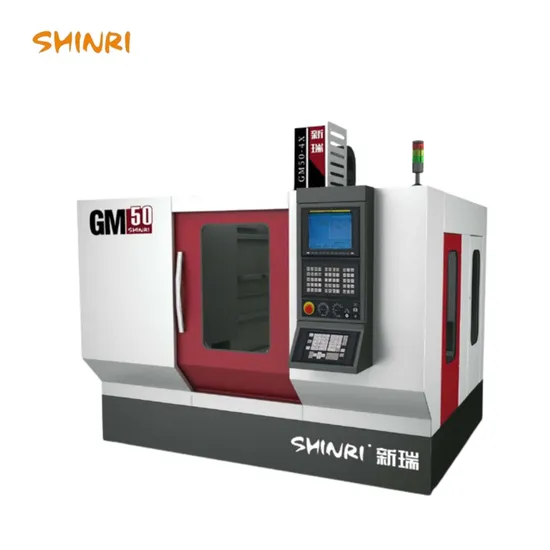

Highway Bridge Type Gantry Machining Center Equipped with Cradle Turntable Turning and Milling Compound Machine GM Series GM50 5-Axis Machining Center

Product Description

Product Description
1.GM series bridge type five-axis machining center, gantry frame structure, equipped with cradle turntable, A-axis working range ±110 degrees, C-axis 360 degrees rotation. The rotary table integrates a turning spindle with a speed of up to 2500r/min, which can realize the combination of turning and milling.
2.GM series five-axis machining center adopts modular structure design, which can adapt to the shape and range of various machining workpieces to meet the needs of different users. The highly rigid modular structure design ensures the high rigidity and precision of the machine tool, which can realize the rough and finish machining from simple parts to complex surfaces. The modular structure design of various forms of table can meet and complete a variety of special processing needs.
Product Parameters

Specification	Unit	GM40-4X	GM50A-5X	GM80-5X
Table dimension	mm	Φ400	Φ500	Φ800
X/Y/Z/A/C axis travel	mm	450/540/400/±360°	500/500+350/400/±110°/±360°	800+350/800/540/±110°/±360°
Max loading of table	kg	60	500 (A axis not linkage) /450 (A axis not linkage)	800 (A axis not linkage) /650 (A axis not linkage)
Table speed	r/min	2500	Rotate axis: 100	Rotate axis: 50
			Tilting axis: 25	Tilting axis: 20
Table accelerated speed	rad/s2	80	Rotate axis: 10.4	Rotate axis: 5.2
			Tilting axis: 2.6	Tilting axis: 2.1
Cross gantry width	mm	890	890	1000
Spindle speed	r/min	12000	12000	18000
Spindle motor power	kW	13	15	25
Rapid move speed(X/Y/Z)	m/min	48/48/48	36/36/36	36/36/36
Overall dimension	mm	2600×3000×3000	2650×3100×3500	4500x6000x4500
Weight	T	6	10	20
