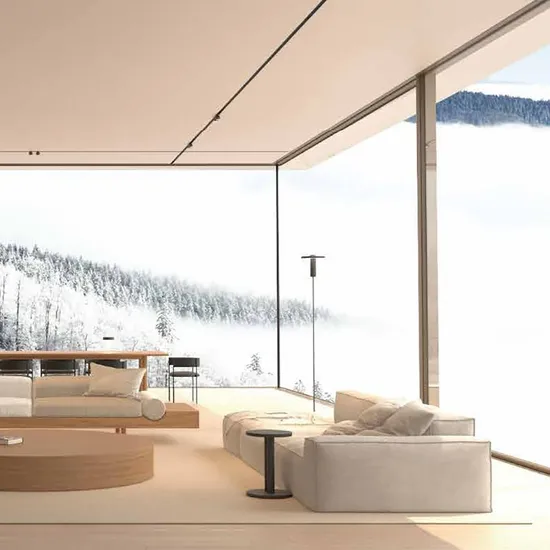

Panorama Series Aluminum Metal Sliding Pan System Door

Product Description

Product Description
System Window
System windows are high-performance door and window products that adopt a systematic design concept. The biggest difference between it and traditional doors and windows is that its design is not a simple patchwork, but is based on a complete system. This system window has undergone a strict standardized process from material selection, profile design to processing technology.
Its profile is usually made of high-strength aluminum alloy, which has good wind pressure resistance, waterproof, heat insulation and sound insulation. The design of system windows focuses on integrity and coordination, and ensures the sealing and durability of doors and windows through precise processing and assembly processes. The hardware accessories of this system window are usually strictly selected and tested, and can withstand frequent switching operations to ensure the long-term and stable use of doors and windows.System windows are widely used in a variety of scenarios such as residential, commercial buildings, and public facilities. In residential buildings, it can provide users with a comfortable living environment, effectively isolate external noise and heat, and improve the indoor lighting effect. In commercial buildings, its beautiful appearance and efficient performance help to enhance the overall image and use value of the building.Product Parameters

SPECIFICATION
Model	Panorama 175(2.0)	Panorama 175(3.0)	Panorama 848-93	Panorama 119	Panorama 158	Panorama 146	Panorama 188	Panorama 97
Profile Thickness /Thermal Break (mm)	175/27	175/30	84.8/35.3	119/29	158,232,305/ 22,30	146/30	188/30	97/30
Sash Depth/Thermal Break (mm)	207/14.8	207/16	84/25	65/29	216/14.8	97/25.3	97/25.3	97/25.3
Fixed Glazing Options (mm)	26-55	26-55	37/42	37/42	26-42	40-45	40-45	40-45
Fixed Height Limit (mm)	350-6800	350-6800	350-6000	350-6000	350-6800	350-6000	350-6000	350-6000
Fixed Width Limit (mm)	>350	>350	350-6000	350-6000	>350	350-6000	350-6000	350-6000
Sash Glazing Options (mm)	26-46	26-45	37	37-42	26-42	40-45	40-45	40-45
Sash Height Limit (mm)	300-6800	300-6800	600-2500	600-2500	350-6800	600-3000	600-3000	600-3000
Sash Width Limit (mm)	300-6800	300-6800	400-1500	400-900	350-6800	400-900	400-900	400-900
Sash Weight Limit (kg)	1500	3000	100	100	3000	100	100	100
Sash Area Limit (m2)	20	20	2.5	2.5	20	2.5	2.5	2.5

Detailed Photos
HIGH-PERFORMANCE THERMAL INSULATION
The system window adopts a multi-cavity profile design, combined with high-performance glass configurations such as hollow glass or three-glass two-cavity, which can effectively block the transfer of indoor and outdoor heat. In winter, it can reduce the loss of indoor heat and keep the indoors warm; in summer, it can block the entry of external heat, reduce air conditioning energy consumption, and achieve good energy-saving effects. EXCELLENT SOUND INSULATION EFFECT
The system window can effectively reduce the introduction of external noise by optimizing the profile structure and sealing design. Its multi-layer sealing strips and special sound insulation material configuration can block external interference such as traffic noise and industrial noise, providing users with a quiet and comfortable indoor environment, especially suitable for street-side residences or buildings near noisy areas.STRONG WIND PRESSURE RESISTANCE
The profile strength of the system window is high, and the hardware accessories have been strictly selected and tested to withstand large wind pressure. In strong wind weather, such as typhoons, heavy rains, and other severe weather conditions, the system window can still remain stable without deformation or damage, ensuring the safety and reliability of the building.
GOOD WATER TIGHTNESS AND AIR TIGHTNESS
The system window adopts a multi-channel sealing design, including wool strips, rubber strips, and other sealing materials, which can effectively prevent rainwater leakage and air infiltration. Its watertight design can prevent rainwater from penetrating the room through the gaps of doors and windows during strong winds and rainstorms, while the airtight design can effectively block the entry of external dust and pollutants, keeping the indoor air fresh.FLEXIBLE OPENING METHOD
The system window provides a variety of opening methods, such as inward opening, outward opening, inward tilting, push-pull, etc. Users can choose the most suitable opening method according to actual needs and usage scenarios. For example, the inward tilting opening method can achieve micro-ventilation, which is suitable for maintaining air circulation when no one is indoors; the outward opening method can maximize the use of space and provide a better view.FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a 100% manufacturer, specializing in customized doors and windows business, with many skilled workers and experienced sales staff.
Q2: Do your products have certification?
A2: Yes, it has complete international certification and test reports, including the standards of various countries.
Q3: Can doors and windows be customized?
A3: Yes, high customization to meet specific use environments and provide aluminum doors and windows that match the architectural style.
Q4: How to find the right size?
A4: According to your needs, we can provide measurement, design, installation guidance, and other services.
Q5: Do you provide after-sales service?
A5: Quality and after-sales are guaranteed, please contact us if you have any questions.
