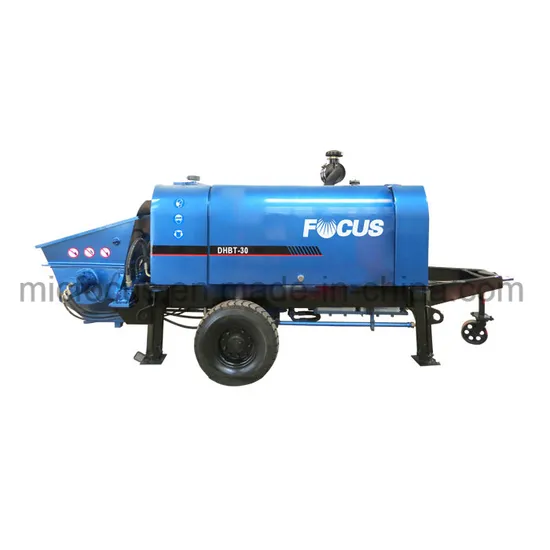

30m3/H Mini Diesel Trailer Concrete Pump Portable Concrete Pump for Sale

Product Description

30m3/H Mini Diesel Trailer Concrete Pump Portable Concrete Pump for sale
Mini diesel concrete pump Parameter:

Item	HBTS30-10-76R
Max Theoretical Output Capacity (Low /High pressure)	30m3/h
Max outlet Pressure (High/Low pressure)	10Mpa
Concrete slump	120-230mm
Aggregate Size	gravel≤30mm
Power	Diesel motor, 76kw
Speed	2400r/min
Conveying Cylinder Diameter	Ø 100/1600mm
Concrete Cylinder Diameter	Ø 180/1600mm
Fuel Tank Capacity	400L
Hopper Capacity	0.3m3
Filling Height	1100mm
Maximum Theoretical Conveying Distance (vertical Height/Horizontal Distance)	100/400m
Pipe Cleaning Mode	Washing
Overall Dimension	5390×1500×2100mm
Total Weight	3500kg

Sizes of FOCUS Electric and Diesel concrete pump:
JBT30 concrete pump with mixer, HBTS30 small trailer mounted line pump, HBTS40 small trailer mounted line pump, HBTS60 Electric Trailer mounted line pump, HBTS60 Diesel trailer mounted line pump, HBTS80 Electric trailer mounted line pump, HBTS80 Diesel Trailer mounted line pump.
Why would our clients choose FOCUS concrete pump?
FOCUS trailer mounted line pump is categorized into two types of engine powered: electric motor and diesel engine. Main features are as follows:
1. Open hydraulic system with tri-pump and two circuit is adopted in the concrete pump, constant power control and pressure cut-off control can promise a multistage and reliable main pump.
2. High quality hydraulic components and valves use German REXROTH.
3. The equipped leading overflow valve makes the overflow to be safer, the main pumping circuit and S valve circuit of the trailer mounted line pump are independent to each other, which makes the working system reliable and the changeover steady.
What are the main features of FOCUS concrete pump?
*Power system of trailer mounted line pump
Main hydraulic pumps are famous German REXROTH products.
Engine: German Deutz
*Electric control system of trailer mounted line pump
The reversing control of the trailer pump is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.
*Hydraulic system of trailer mounted line pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
*Pumping system of trailer mounted line pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
Our concrete pump have been purchased, installed and operated all over the world:
Thanks for visiting, our concrete pump have been delivered /distributed to the world, it'll be such a great honor if you can join us:
