High Speed Automatic Plastic HDPE PE PPR Water Cable Pipes Extruder Extrusion Making Machine
| US$15,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJ
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
Suitable Material
PE,PP,HDPE,PPR Pellet
Application
Water Supply Pipe, Drainage Pipe, Conduit Pipe
Pipe Range
10-630mm
Screw Diameter
20-150mm
Screw Type
Single Screw
Barrel Material
38CrMoAl
Contactor and Air Switch
Schneider
Temperature Transducer
Omron
Machine Name
High Quality Automatic Plastic Pipe Extruding Mach
Transport Package
Standard Export Package
Specification
12-630mm
Trademark
BORUN
Origin
China
HS Code
84778000
Production Capacity
100PCS/Year
Product Description
High Speed Automatic Plastic HDPE PE PPR Water Cable Pipes Extruder Extrusion Making MachineDescription:
The production line is mainly used to produce PE plastic pipes, such as HDPE water supply pipes and MPP pipes which are widely used in municipal, telecommunications, electrical power, gas, water, heat and other pipeline projects. The PE pipe extrusion line consists of vacuum feeder, high efficient single screw extruder, extruder mold, vacuum calibration tank, spray cooling tank, haul off machine, planetary cutting machine and PLC micro control system. it is reliable quality with high performance.
Features:
*PLC control, high automation;
*Adopting specialized screw with good plasticizing effect.
*Vacuum calibration, constant temperature control, eliminating pipe stress;
*Adopting co-extrusion head to add color line;
*High extrusion capacity, low and equal temperature of melt.

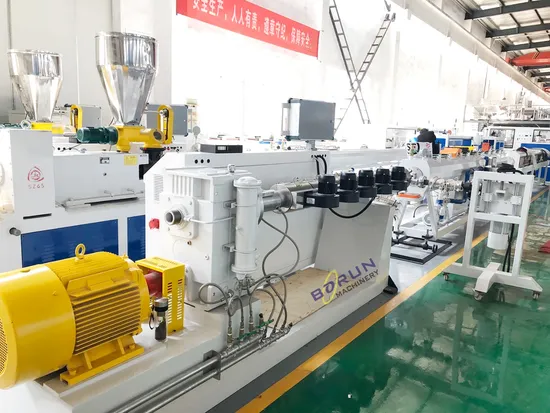

PE/PP/PPR/MPP Pipe Extrusion Production Line
Co-extruder for color line
Control Panel for Vacuum Calibration Tank
Double disk winder for plastic hose pipes.
Technical parameters:
| Model | L/D | Output (kg/h) | Rotate speed (rpm) | Drive power (KW) | Center height (mm) |
| SJ-25 | 25/1 | 5 | 20-120 | 2.2 | 1000 |
| SJ-30 | 25/1 | 10 | 20-180 | 5.2 | 1000 |
| SJ-45 | 25-33/1 | 50-150 | 20-150 | 7.5-37 | 1000 |
| SJ-65 | 25-33/1 | 60-250 | 20-150 | 22-90 | 1000 |
| SJ-75 | 25-33/1 | 200-350 | 20-150 | 55-110 | 1000 |
| SJ-90 | 25-33/1 | 180-550 | 20-110 | 37-185 | 1000-1100 |
| SJ-120 | 25-33/1 | 320-800 | 20-90 | 75-280 | 1000-1250 |
| SJ-150 | 25-33/1 | 400-1200 | 20-75 | 90-355 | 1000-1300 |
spare parts for free
| No. | Name | Qty. | Application |
| Machinery part: | |||
| 1 | Oil seal | 1 pc. | Gearbox high-speed shaft |
| 2 | Screw unload tools | 1 set | Unload screw |
| 3 | Sprayer | 10 pcs. | Vacuum tank and spray tank |
| 4 | Seal | 5m | |
| 5 | Rubber block | 10pcs. | Haul-off |
| 6 | Air pipe | 5m | Cutter |
| Electrical part: | |||
| 1 | Thermocouple(3m) | 3pcs. | Extruder |
| 2 | Small AC contactor | 1pc | Electric cabinet |
| 3 | Small circuit breaker | 1pc | |
| 4 | Potentiometer | 1pc | |
