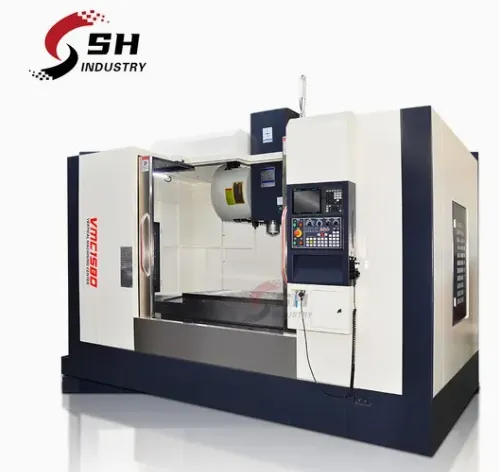

Metal Working CNC Milling Vertical Machining Center Vmc1580 China CNC Milling Machine

Product Description

Metal Working CNC Milling Vertical Machining Center VMC1580 China CNC Milling Machine
Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Auto lubrication system
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
Main technical specifications:

Working table	Table size	1700x800
	T-slot	5-22-135
	Max loading capacity of table	1500kg
Spindle	Spindle taper	BT40/50
	Spindle speed	6000/8000rpm
	Spindle power	11/15KW
Travel	X,Y,Z axis travel	1500X800X700
	Distance from spindle nose to table	BT50-155: 155-855 BT40-150: 190-890
	Distance from spindle center to vertical guide way surface	855mm
Feed	Rapid movement speed X,Y,Z	30/30/30
	Feed rate of cutting X,Y,Z	1~10000mm/min
Three axis	X Y Z axis motor torque	10/10/15NM
	X Y Z axis linear guide rail width	55mm
	X Y Z lead screw size	50
	X Y Z sliding block no	4/4/4
Tools capacity	Tools capacity	24T/16
	Max tool weight	8kg
	Max length	φ78/300mm
	Tool magazine type	Arm type
Precision	Positioning accuracy X/Y/Z	±0.005mm
	Repeated positioning accuracyX/Y/Z	±0.003mm
Machine tool	Machine size	2400x2000x2550mm
	Casting material model	HT300
	Machine hardness	45-50rkc
	Machine weight	15000kg

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
