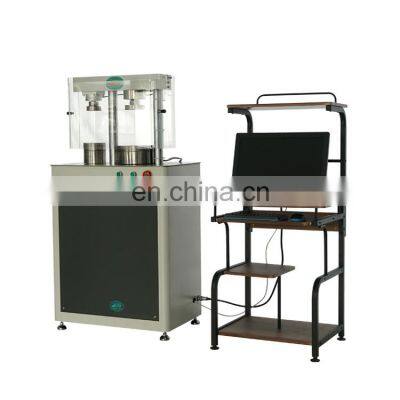

300kn 10kn Digital Cement Compression Machine for compressive strength and flexural strength

Product Description

Product Description
Product Usage and FeaturesHYE-300D Concrete Anti folding and Anti compression MachineEQUIPMENT INTRODUCTION:The series of testing machines are powered by hydraulic pressure. Electro-hydraulic servo control technology is used to test the mechanical properties of cement, mortar, brick, concrete and other building materials. It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed. PRODUCT FEATURES:1.Using 300KN and 10KN high precision load cells;2.Use special clamp of anti-pressure and anti-folding fixtures;3.Adopt a perspex glass protective cover; 4.Servo motor plus ball screw, no noise, high con1 precision;5.220V power supply energy saving and environment protection.APPLICATION STANDARD:GBT、ISO、ASTM、DIN、JIS etc.ParametersModelHYE-300DHYE-300BCompressiveflexural maximum test force(KN)300/10300/10Test accuracyLevel 0.5/1Level 0.5/1Compressive piston stroke80mm80mmAnti-floding piston stroke60mm60mmCompressive compression space180mm180mmFlexural compression space180mm180mmFied upper platen sizeΦ108/Φ60mmΦ108/Φ60mmBall-type upper platen sizeΦ168mmΦ168mmLower platen sizeΦ207mmΦ207mmMotor power1.5KW0.75KWMainframe dimensions560*400*1340mm560*400*1340mmMachine weight520kg520kgControl cabinet dimensions540*500*820mm540*500*820mmProduct DetailsApplicationContact USCangzhou Lovely Technology Co., Ltd Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, With advanced technologies and best customer service, Our product has exported to over 100 countries and regions, which wins favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ? Get our in-time reply via email or telephone or instant messenger; Get best product with excellent quality and competitive price; One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; Feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; Easily make the payment via West Union, Paypal, T/T for small value order;
