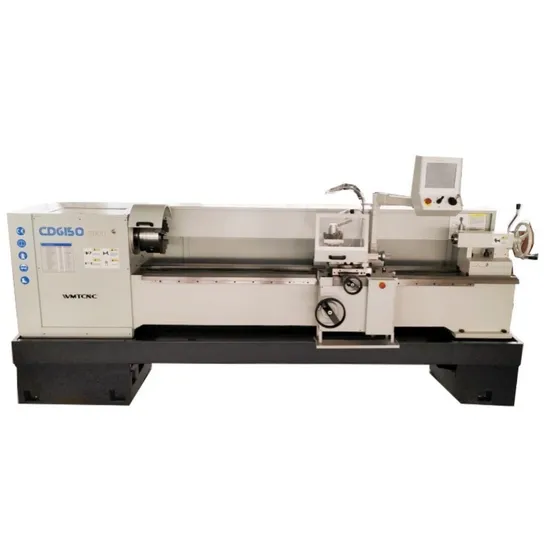

[CD6150-3000]Shansen Electronic Lathe Machine with 3000mm Workpiece Length

Product Description

https://cdfcd11d982fc597.en.made-in-china.com/product-list-1.html
Product model:CD6150-3000
Product Parameters

ltems	Unit	MOdel CD6150-3000
Swing over bed	mm	500
Swing over carriage	mm	290
Center height	mm	250
Max. workpiece length	mm	3000
Max. processing length	mm	2920
3-jaw chuck diameter	mm	250
Speed ranges	rpm	16-1600
Spindle bore	mm	82
Spindle taper	mm	Metric90
Spindle nose		C8
Top slide travel	mm	150
Cross travel (X axis)	mm	260
Longitudinal travel (Zaxis)	mm	3000
Number of stations		4
Tool shank size	mm	25*25
Quill travel	mm	160
Quill diameter	mm	75
Quill taper		MT5

Product Description
Electronic lathe is our company's electronic lathe series of products in the two specifications, is the company's independent research and development, with independent intellectual property rights of new products, is a substitute for ordinary lathe. Through mechanical and electrical coordination can be extremely convenient to complete the inside and outside cylindrical surface, conical surface, end face and all kinds of thread processing, suitable for machining, tool manufacturing, equipment maintenance and batch production of processing workshop use.

Features of the Electric Lathe
Save 10% cost than ordinary lathe.
It takes 3 years to learn to operate ordinary lathe, but it takes only 3 minutes to learn electric lathe.

Compared with the ordinary lathe, the performance of the electric lathe has been greatly improved, capable of turning threads of any pitch, and realizing cylindrical cycle cutting, thread cycle machining, fixed-length machining and so on.
Pitch feed, processing length, cutting speed, spindle speed, etc. can be set arbitrarily, without exchanging gears.
Detailed Photos

company
Certifications
FAQ
1.What type of company are you?
We are a manufacturer.
2.What can you buy from us?
Electronic Lathe, Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switchand Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE etc.,
