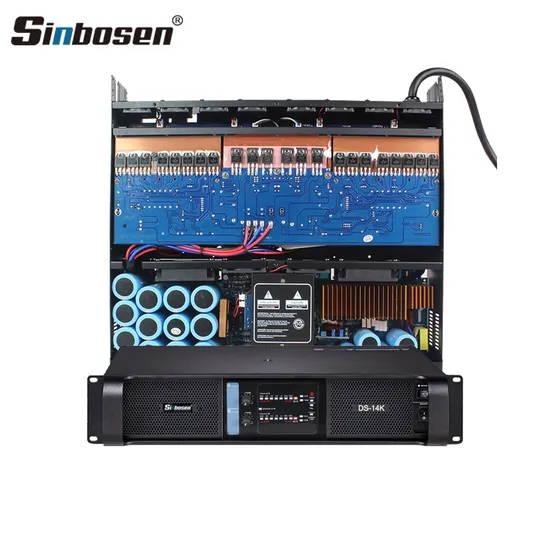

Sinbosen Ds-14K Professional Audio Class Td 2-Channel Power Amplifier for 18 Inch Subwoofer
| US$500.00-560.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DS-14K
Used For
Professional
Tube Type
Transistor Amplifier
Function
Post Amplifier, Amplifier Combined, Pre-amplifier
Sound Channel
2.1
Output Number
2
Voltage
220V&110V
Element Number
Push-Pull Amplifier
Conductive Mode
D
Amplifier Type
Class Td
Frequency Response
20 Hz - 34 kHz
Packing Dimension
580*180*560mm
Color
Black, Red, Blue
Certification
Ce, RoHS
OEM Sevice
Accepted
Warranty
Three Years
Transport Package
Strong Carton Packing
Specification
15.5kg
Trademark
Sinbosen
Origin
Guangzhou, China
HS Code
8518400090
Production Capacity
1000 PCS/Month
Packaging & Delivery
Package Size
57.00cm * 56.00cm * 18.00cm
Package Gross Weight
16.000kg
Product Description
Product Parameters| Sinbosen DS-14K 2400 Watt Sound Professional High Power Amplifier | |
| ITEM | DS-14K |
| Output Power | 20-20kHz, 1W with 1 KHz |
| 8ΩStereo Power(RMS) | 2400Wx2 |
| 4ΩStereo Power(RMS) | 4400Wx2 |
| 8ΩBridged Power(RMS) | 8800W |
| 4ΩBridged Power(RMS) | 14000W |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD Class |
| TourClass Protection | short circuit, DC voltage, turn-on/off transient, current, inrush |
| Operating voltage | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 Kohms |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Weight(kg) | 15.5kg |
| Feature |
| 2 Channel Class TD Switching power amplifier 2 x 2400 Watts Watts into 8 Ohms, 2 x 4400 into 4 Ohms Create SUPER BASS sound,suit for 2units 18"/21" subwoofer Separately controllable on Gain Scalable Voltage Peak Limiter (VPL) Bridge-mode operation for Touring Applications Comprehensive protection scheme Use 12Pcs high quality capacitors 3300uf 200V +4pcs 2200uf Capacitors Use Original ONSEMI transistor Original Neutrik XLR*/Speakon connectors High efficient cooling. Add more 8pcs fans on rear side, totally 12pcs fans built-in Temperature protection;Over current protection;Short circuit protection built-in |
More Detail
FAQ 1.What's your MOQ (Minimum order quantity)?
A:There is no MOQ limited, you can choose to order 1pc or 1000000pcs, the more the better!
2.Except product value and shipping cost, do I need to pay any other fees in China?
A:No other fees needed in China!
3.How can I make the payment, what's your payment terms?
A:You can pay by TT, Western Union, or Paypal; 30% deposit before production, 70% balance before shipment!
4.How long will it takes for production after payment? ( By express, door to door delivery, such as DHL/TNT/FedEx/UPS...)
A:If your order qty less than 5000pcs, it will takes about 10 working days; If more than 5000pcs, please confirm with me directly!
5.How long is your guarantee period of products?
A:1 year, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!
6.Can you use our company logo and package?
A:Yes, we are manufacturer, we accept OEM request!
