New Farming Agricultural Machinery Tool Cultivator Soil Tilling Machine Subsoiler Cultivator Nine Legs Subsoiler

Product Description

Product Description
SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
---The drafter of industry standard for fertilizer spreaders, disc plows, disc harrows and share plows in China

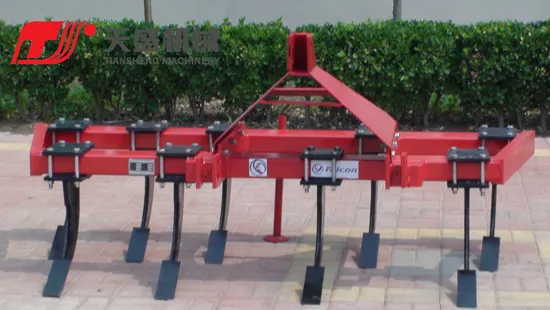

TS3S Series of Subsoiler
It is mainly suitable for subsoiling in the field of potato, beans, cotton and can break surface soil harden, loosen soil, retain water underground, and clean stubble.It has advantages of adjustable depth, wide range of applying, convenient suspension and so on.
Parameter:

Model	Unit	TS3S-1.0	TS3S-1.4	TS3S-1.8	TS3S-2.1	TS3S-2.6
Working width	m	1.0	1.4	1.8	2.2	2.6
No. of legs	pcs	5	7	9	11	13
Working depth	mm	100-240	100-240	100-240	100-240	100-240
Total weight	kg	240	280	320	370	450
Matched power	hp	25-35	35-50	50-60	70-80	80-100
Linkage	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted

Detailed Photos

Company Profile






Certifications


Company events and honor


After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.

Other products





All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.
