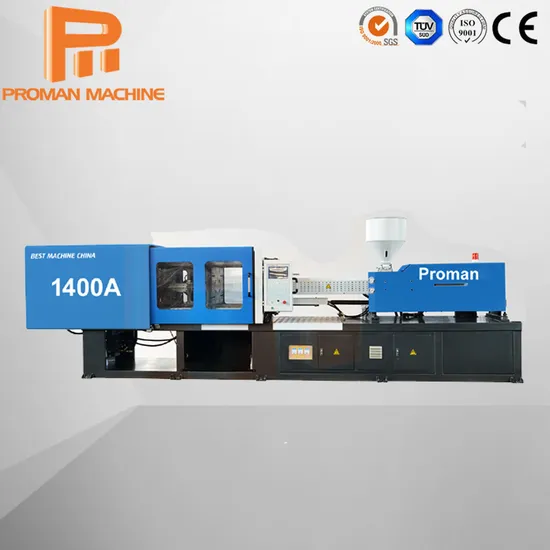

Plastic PPR PVC Pipe Fitting Injection Moulding Manufacturing Machine Supplier in China
| US$14,000.00-42,000.00 | 1 Piece (MOQ) |
Basic Info.
Plastic Type
Thermosetting
Plasticizing Way
Reciprocating Type
Clamping Way
Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Material
Stainless Steel
Composition
Injection Machine
Processing Material
Pet ,PP,PE
Elctric
Siemens,Mitsubishi,etc
Warranty
Two Years
Capacity
90ton to 1000ton
Exchange Parts
Free
Color
by Customer Requirement
Special
Cap and Preform Making
Market
African,Middle East,American
Transport Package
Wooden Cases
Specification
5.8m*1.5m*1.8m
Trademark
Proman
Origin
Jiangsu
HS Code
84774010
Production Capacity
500PCS/Month
Product Description
Plastic PPR PVC Pipe Fitting Injection Moulding Manufacturing Machine Supplier in ChinaServo energy saving injection molding machine output power changes with the loading changing. There's no extra waste of power. The motor doesn't work while cooling, electricity consumption is 0. As compared with the tradition injection molding machine, the servo machine can save electricity 20%-80% that brings you excellent profit.
-Excellent energy saving
As compared with the traditional fixed pump injection molding machine, it saves energy 20%-80% under the same working condition.
-Excellent injection molding stability
The pressure and flow of servo drive system applies closed-loop control, as compared with the traditional injection molding machine, it greatly increases repeatability precision of injection molding.
-Fast response
Fast response servo drive, the start time faster than that of the traditional injection molding machine by 50%.
-Environmental friendly
The complete machine runs under low noisy, low speed operation and quite.
-Constant oil temperature
The servo motor output hydraulic oil according to proportion to avoid extra heat. Even the hydraulic oil need not to be cooled to realize excellent water saving.
| INJECTION UNIT | A | B | |||||
| Screw diameter | mm | 54 | 56 | ||||
| Shot size(theoretical) | Cm³ | 720 | 770 | ||||
| Shot weight | g | 650 | 690 | ||||
| Injection pressure | Mpa | 190 | 178 | ||||
| Injection rate | g/s | 200 | 215 | ||||
| Screw L/D ratio | L/D | 22.5 | 21.6 | ||||
| Screw speed | r.p.m | 0-180 | |||||
| Nozzle Diameter | Srmm | 20 | |||||
| CLAMPING | |||||||
| Clamp tonnage | KN | 2600 | |||||
| Toggle stroke | mm | 530 | |||||
| Mould Thickness | mm | 200-550 | |||||
| Space between tie-bars | mm | 554X554 | |||||
| Ejector stroke | mm | 160 | |||||
| Ejector tonnage | KN | 70 | |||||
| Ejector number | Piece | 9 | |||||
| Hole Diameter | mm | 160 | |||||
| OTHERS | |||||||
| Heat power | KW | 15.5 | |||||
| Max. pump pressure | MPa | 16 | |||||
| Pump motor power | KW | 25 | |||||
| Valve Size | mm | 16 | |||||
| Machine dimension | m | 6.1X1.7X1.8 | |||||
| Machine weight | t | 8 | |||||
| Oil tank capacity | L | 350 | |||||
