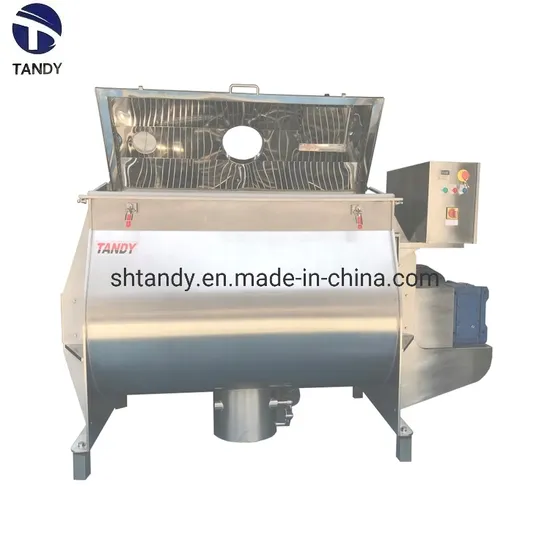

Dry Powder Materials Agitation Single Shaft Paddle Mixer

Product Description

Dry Powder Materials Agitation Single Shaft Paddle Mixer
Main Technical Data:

Model no.	Effective volume(L)	Loading coefficient	Power(KW)	Rotate speed(R/min)	Dimension(mm)	Weight(kg)
TDS-200	200	0.6-0.8	4.0	53	1800X900X1110	430
TDS-300	300	0.6-0.8	5.5	53	1900X1000X1250	680
TDS-500	500	0.6-0.8	7.5	45	2050X1200X1250	890
TDS-1000	1000	0.6-0.8	11.0	45	2500X1200X1350	1360
TDS-1500	1500	0.6-0.8	15.0	39	2950X1350X1400	1780
TDS-2000	2000	0.6-0.8	18.5	39	3330X1500X1650	2260
TDS-3000	3000	0.6-0.8	30.0	31	3650X1880X1950	3150
Pls feel free to contact us if you need more technical parameters!

FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:
The single shaft paddle mixer is suitable for powder and powder, granule and granule or add a little liquid to mixing. It is widely applied in nuts, beans, feed or other kinds of granule material. The machine have different angle of blade inside thrown up the material thus cross mixing. Main Features:
1. Rotate reversely and throw material to different angles, mixing time 1-3 minutes.
2. Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%.
3. Only 2-5mm gap between shafts and wall,open-type dischrging hole.
4. Patent design and ensure the rotating axle & dischrging hole with zero leakage.
5. Full weld and polishing process for mixing hopper, without any fastening piece like screw, nut.
6.The whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.
