CNC Angle Steel Automatic Drilling Cutting Marking Line Machine

Product Description

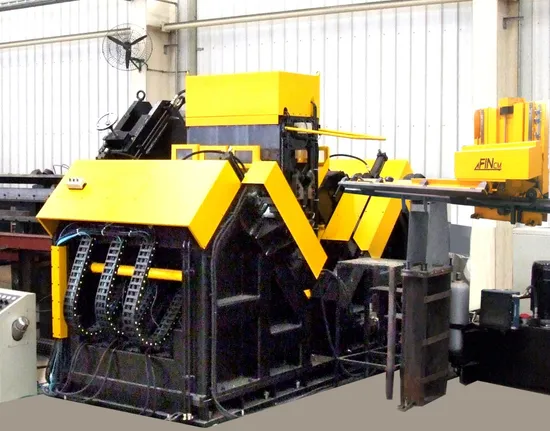

High-Speed Angle Steel Drillling Markling Shearing CNC Machine 140mm×140mm×10mm~360mm×360mm×35mm
Angle drilling shearing and marking machine.
Applicable Industry:
The machine is the special equipment used for angle steel drilling marking &shearing mainly in the field of angle steel tower industry.
Technical Specification:

Angle size(mm)	140×140×10 ~ 360×360×35
Range of stadia(mm)	50 ~ 330(stepless)
The quantity of drilling cow per side	arbitrariness
Quantity of drilling spindle per side	3
Range of drilling diameter(hard metal)(mm)	φ17.5 ~ φ40
Motor power of drilling spindle (KW)	2×7.5
Rotation speed of spindle(r/min)	180 ~ 3000(stepless adjustment)
Spindle feeding speed(m/min)	0~ 10
Quantity of CNC axis	9
Max length of workpiece (m)	12
Angle feeding speed (m/min)	40
Quantity of character group	1 group
Spindle taper	BT40
Nominal marking force: 1	1200KN

The finished angle conveyor is rotated to one side by pneumatic power, the max length of finished angle is12m. There are four sets of transverse conveyor, infeeding automatically and intermittently. Type of programming: keyboard input, USB interface input, floppy disc input. Layout: A or B Working environment: Working temperature: 0ºC~ 40ºC Power: Three phase four wire systems AC Voltage: 380V Fluctuation of voltage: ±10% Frequency: 50 Hz ±1
Company feature:
1.The are three groups of drilling spindles on each side of drilling unit,which can install three kinds of drills with diffirent diameter .Each side of drilling spindles can move altogether by CNC to change the drilling stadia .
2.CNC drilling head sdopt two linear guides to derecting,driven by AC servo motot and precision ball screw.It adopt the precision spindle (inner water cooling ),with butterfiy spring automatic and hydraulic cylinder to loosen the knife;It"s very convenient to replace the shank..
3.The marking unit adopt closed frame with stronger rigidity .marking stadia can bi ser at will.
4,CNC feeding trolly is drive by AC servo motor .The photoelectric encorder feeds back the information.Closed loop control to ensure positioning accuracy.
5.Hydraulic system is used to complete clamping workpiece crimping of drilling spindles ,hydraulic balance of drilling head and marking.
6.The control system consists of a host computer ,CNC system,servo motor,PLC and detection switch etc. .Only to input the drawing workpeice, the processing program is automatically generated;
