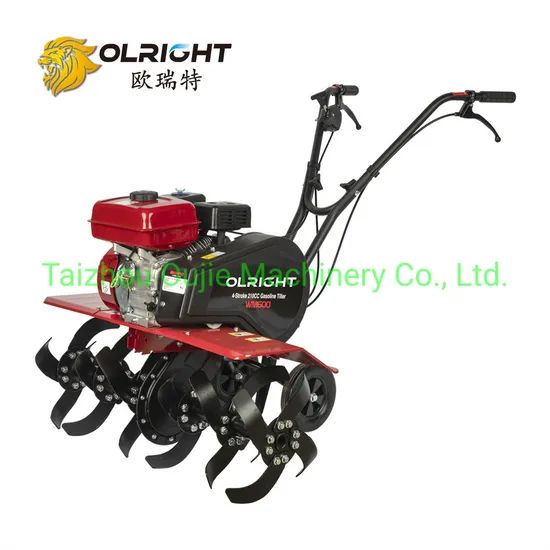

Farm Machinery 170 Gasoline Mini Power Cultivator Tiller with Rotary Tillage and Weeding Equipment
| US$130.00-200.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
OJ170
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Gasoline
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Orange
Warranty
1 Year
Transport Package
Box
Specification
84*51*63 cm
Trademark
everstone/blackridge/mamamiya/elegen
Origin
Zhejiang
Production Capacity
10000PCS/Month
Product Description
Welcome to Taizhou Oujie Machinery Shopping MallWe are a professional agricultural machinery manufacturer, like gasoline engine, gasoline generator, diesel generator, water pump, brush cutter, power tiller, power sprayer, seeder and so on.
Gasoline and Diesel Power Tiller
1. Gear box drive
2. Stronger powerful.
3. Useing for dry field and water feild
4. As usual attached one set dry land blade
5. Light weight, easy operation
| Model | OJ4.2Q | OJ5.4Q | OJ8.2Q | OJ3.8C | OJ4.0C | OJ6.3C | OJ7.5C |
| Engine Name | Gasoline | Diesel | |||||
| Engine Model | 170F (7HP) | 177 (9HP) | 188F (13HP) | D173F (5HP) | D178FA(E) (7HP) | D186FA(E) (10HP) | D188FA(E) (12HP) |
| Engine Type | 1-cylinder, 4-stroke ,air-cooled | 1-cylinder, 4-stroke ,air-cooled | |||||
| Power | 4.2kw | 5.4kw | 8.2kw | 3.8kw | 4.0kw | 6.3kw | 7.5kw |
| Speed | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min |
| Starting mode | Recoil /Eletric | ||||||
| Fule volume | 5.8L | 5.6L | 5.6L | 2.5L | 3.5L | 5.5L | 5.5L |
| Oil capacity | 0.6L | 0.8L | 0.8L | 0.75L | 1.1L | 1.6L | 1.6L |
| Clutsh style | Plate cultch | ||||||
| Type of drive | Gear drive | ||||||
| Gear shifting | 2 0 1 R | ||||||
| Cultivation width | 60-110cm | 70-110 | 70-110 | 60-110cm | 70-110 | 70-110cm | 70-110cm |
| Cultivation depth | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm |
| Task speed | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h |
| Productivity | 0.035-0.08hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h | 0.035-0.08hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h |
| Oil consumption | 12-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 | 12-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 |
| N.W. | 80kg | 105kg | 115kg | 80kg | 115kg | 125kg | 125kg |
| G.W. | 85kg | 110kg | 120kg | 85kg | 120kg | 130kg | 130kg |
| MEAS | 84*51*63 cm | 91*56*84 cm | 91*56*84 cm | 84*51*65 cm | 91*56*84 cm | 91*56*84 cm | 91*56*84 cm |
How to choose tiller and cultivator:
1.Currently on the market Tiller drive chassis has two kinds, one is axes and gear, the other is the belt driven. The former is more suitable for large specific resistance of soil, farming terraces compacted areas.
2.It suggest mountains, hilly areas supporting power users to buy air-cooled diesel engine rotary tillers, because of its small size, small, to facilitate the transfer; supporting transport, it is recommended to choose a differential Tiller
Factory pictures:
