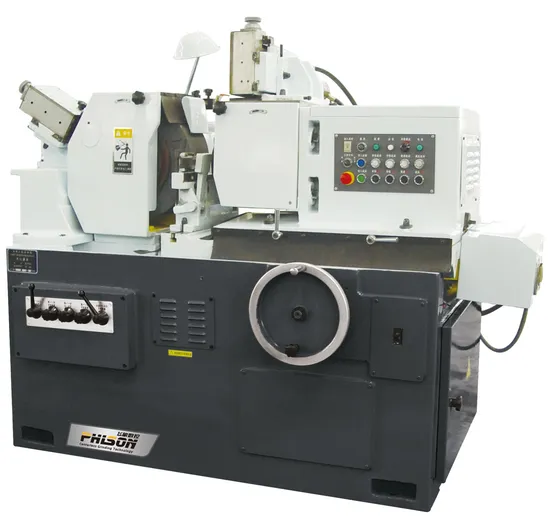

Conventional Centerless Grinding Machine Max. Outer Diameter 50mm
| US$1.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1050A
Type
Centerless Grinding Machine
Processing Object
Cylindrical Parts
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Accuracy
0.002mm
Grinding Wheel
400*150*203mm
Max Diameter
50mm
Control System
Mitsubishi PLC
Transport Package
Wooden Case
Specification
1920*1681*1479mm
Trademark
PHISONG
Origin
China
HS Code
84602210
Production Capacity
100
Product Description
Salient Feature:
★The bearing of grinding wheel spindle is five plates dynamic sliding bearing, with high carrying capacity and rigidity.
★The bearing of regulating wheel spindle is 1:30 cones integral sliding bearing with high carrying capacity and precision.
★The feeding system equipped servo motor with high precision planetary gear reducer, feeding through coupling driving ballscrew.
★The grinding wheel dresser droved by servo motor and ball screw, dressing any steps without any gauge finder.
★AC frequency converter is used for regulating wheel speed control .
★Hydraulic transmission & stepless speed regulation are adopted on regulating wheel dresser.
★The machine operated by 10' touch screen, auto plunge feeding, load, speed, time and steps can be adjusted.
★Equipped Mitsubishi electrical system.
Main Application:
The grinder is mainly used for through-feed grinding for cylindrical surface of ring-type and bearing parts, as well as for manual plunge-cut grinding of
various stepped, cones cylindrical screw surfaces.
Technical data:
